Duolok Female Branch Tee - 316 SS, 1" x 1" x 3/4-14 FNPT
Duolok Female Branch Tee - 316 SS, 1" x 1" x 3/4-14 FNPT
SKU:MUL-8dde03
Premium Duolok Female Branch Tee - 316 SS, 1" x 1" x 3/4-14 FNPT for precise instrumentation applications.
Regular price
$226.72
Regular price
Sale price
$226.72
Unit price
per
Initiate Order
Duolok Female Branch Tee - 316 SS, 1" x 1" x 3/4-14 FNPT
$226.72
Quantity: 1
Claim Your Seller Account
Duolok Female Branch Tee - 316 SS, 1" x 1" x 3/4-14 FNPT
$226.72
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Female Branch Tee is precision-engineered for reliable performance in instrumentation applications. Constructed with high-quality 316 SS, this tee fitting ensures durability and corrosion resistance. With connections of 1" tube fitting x 1" tube fitting x 3/4-14 FNPT, it offers secure and leak-free installations. The tee's precise dimensions and T-shape design guarantee seamless integration into complex piping systems, providing optimal flow control and versatility. Ideal for demanding industrial environments, this Duolok tee meets stringent quality standards, making it a dependable choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features

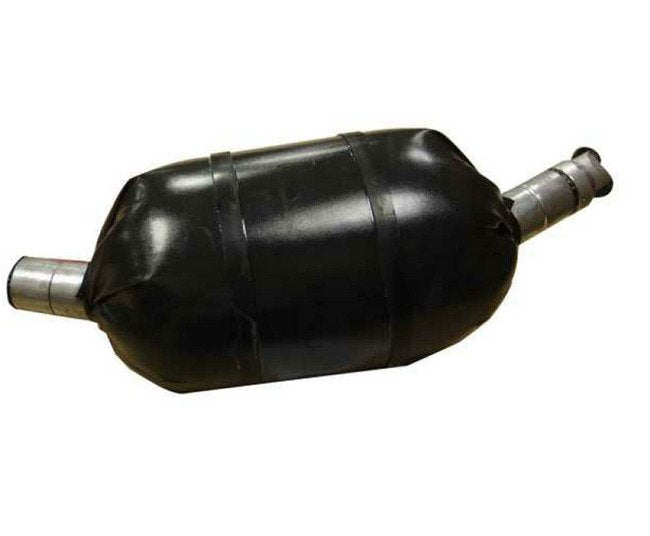

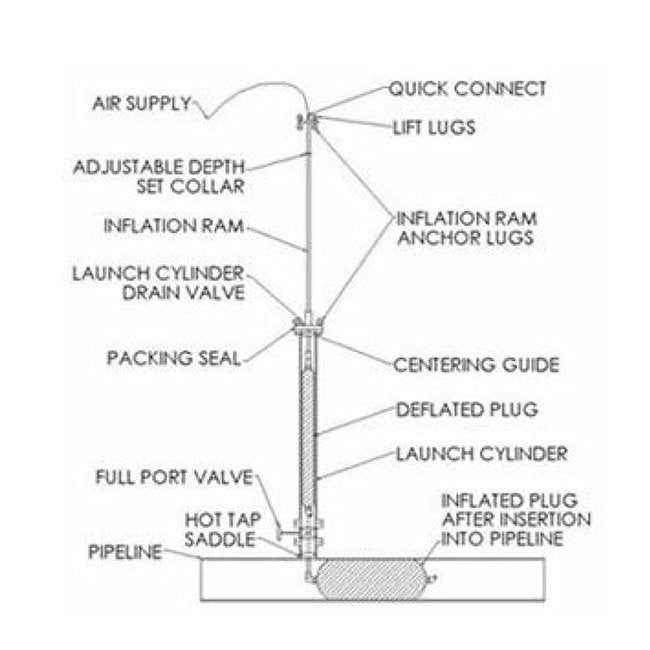

Easy hot tap (live) insertionStops flow for repairsSmall deflated diameterFlexibility allows navigation around cornersTough materials for long lifeThese plugs are generally made with a Nylon reinforced Polyurethane outer ply. Many other materials and sizes available.May not provide a perfect seal for pipeline testing without customization
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
Other sizes and custom configurations also available
Specifications Deflated Length
138 in | 3505 mm
Specifications Hot Tap Plug Diameter
9.5 in | 241 mm
Specifications Inflation Port
3 M
Specifications Maximum Inflation
21 psig | 1.4 bar
Specifications Maximum Pipeline Head
24 ft | 7.3 m
Specifications Maximum Plug Diameter
42 in | 1067 mm
Specifications Shipping Weight
144 lb
