Duolok Female Branch Tee - Stainless Steel 316, 10mm x 10mm x 1/4-18 FNPT

Name: Duolok Female Branch Tee - Stainless Steel 316, 10mm x 10mm x 1/4-18 FNPT
Brand: SSP Fittings Corp.
SKU: FIT-58fb76
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-58fb76

High-quality Stainless Steel Duolok Female Branch Tee for secure and versatile tube connections in instrumentation systems.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

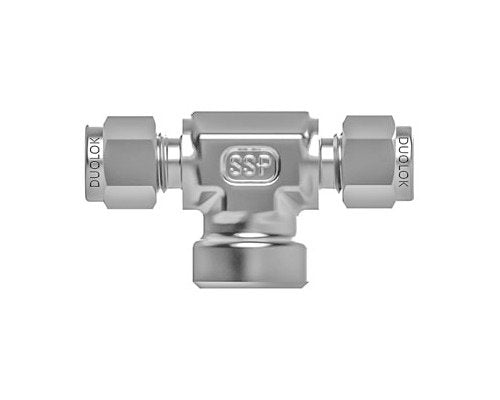

The Duolok Female Branch Tee is expertly crafted from high-grade 316 stainless steel, ensuring durability and resistance to corrosion in demanding industrial environments. This tee features precise Duolok Tube Fittings for secure connections, with a 10mm size on both ends and a 1/4-18 FNPT thread for versatile installations. Its tee shape provides efficient branching capabilities, making it ideal for instrumentation systems requiring reliable connections.

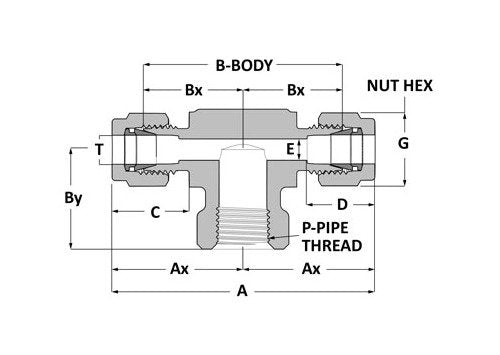

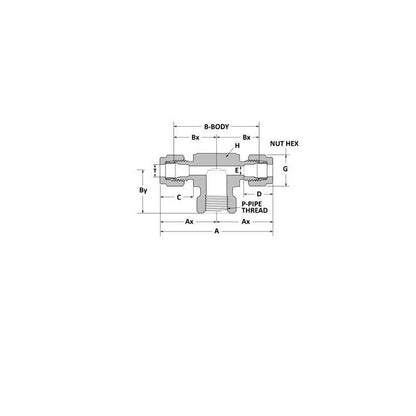

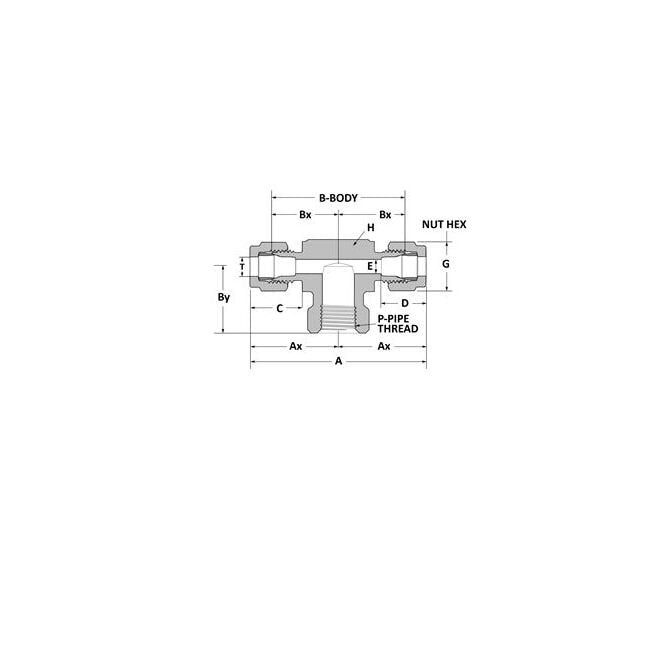

Product Specifications

Dimensions A

67 mm

Dimensions Ax

33.5 mm

Dimensions B

51.8 mm

Dimensions Bx

25.9 mm

Dimensions By

22.4 mm

Dimensions C

19.5 mm

Dimensions D

17.2 mm

Dimensions E

7.9 mm

Dimensions G

19 mm

Dimensions H

13/16 in

Dimensions P

1/4 in

Dimensions T

10 mm

Specifications Body Material

316 SS

Specifications Brand Series

Duolok

Specifications Connection 1 Size

10 mm

Specifications Connection 1 Type

Duolok Tube Fitting

Specifications Connection 2 Size

1 mm

Specifications Connection 2 Type

Duolok Tube Fitting

Specifications Connection 3 Size

1/4-18

Specifications Connection 3 Type

FNPT

Specifications End Connections

TF x TF x FNPT

Specifications Handle Color

Specifications Handle Type

Specifications Production Category

Specifications Shape

Tee

Category 6

Tube Fitting to NPT Thread Fitting - Duolok
