Duolok Female Run Tee 3/4" Tube Fitting - 316 SS
Duolok Female Run Tee 3/4" Tube Fitting - 316 SS
SKU:137-0e0197
High-quality 316 SS Female Run Tee with 3/4" Tube Fitting & FNPT Thread for secure, leak-free connections in instrumentation systems.
Regular price
$132.26
Regular price
Sale price
$132.26
Unit price
per
Initiate Order
Duolok Female Run Tee 3/4" Tube Fitting - 316 SS
$132.26
Quantity: 1
Claim Your Seller Account
Duolok Female Run Tee 3/4" Tube Fitting - 316 SS
$132.26
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Female Run Tee is a precision-engineered tube fitting made from high-quality 316 SS, ensuring exceptional durability and corrosion resistance. This Tee features connections suitable for 3/4" tubing and FNPT threads, perfect for seamless integration in instrumentation systems. With precise dimensions and a Tee shape design, it guarantees secure and leak-free connections. Ideal for various applications requiring reliable fluid control, this fitting is a top choice for industries demanding high-performance tube fittings.
Product Specifications
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50 % and 80 % of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50 % of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note

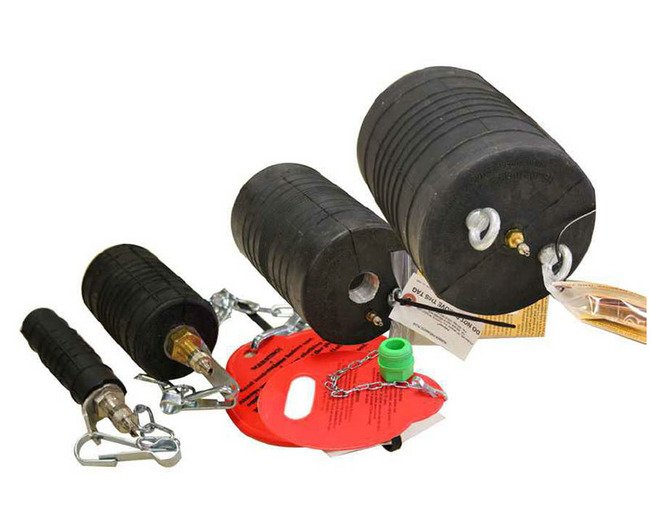

Single Size Pneumatic Sealing Plugs without By-Pass
Specifications Deflated Length
10.4 in | 265 mm
Specifications Maximum Pipeline Head
34 ft | 10.4 m
Specifications Maximum Pipe Diameter
8 in | 203 mm
Specifications Minimum Pipe Diameter
6.9 in | 176 mm
Specifications Plug Diameter
6.9 in | 176 mm
Specifications Required Inflation
36 psig
Specifications Shipping Weight
5 lb

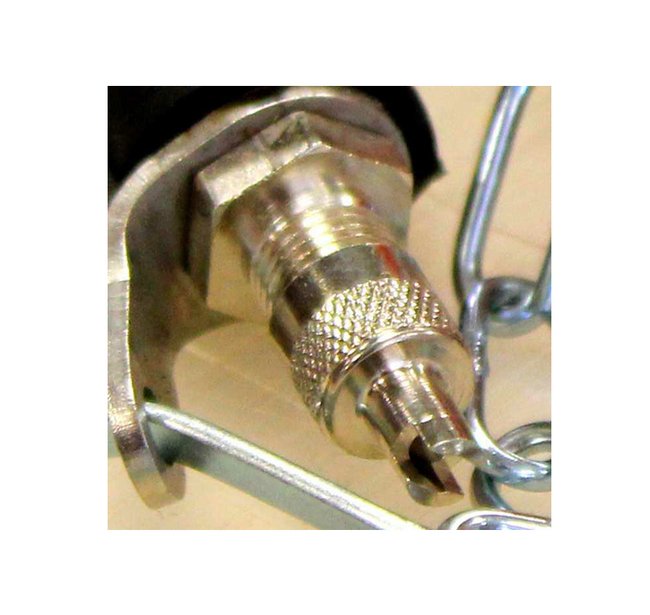

Specifications Valve Type
Tire
