Duolok Female Run Tee - Alloy 400, 1/4 TF x 1/8-27 FNPT x 1/4 TF

Name: Duolok Female Run Tee - Alloy 400, 1/4 TF x 1/8-27 FNPT x 1/4 TF
Brand: Petersen Products Co.
SKU: 137-f85ab9
Price: 34.99 USD
Availability: OutOfStock

SKU:137-f85ab9

Premium Alloy 400 Female Run Tee with 1/4 TF x 1/8 FNPT connections for secure and leak-free installations.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your instrumentation setup with the Duolok Female Run Tee. This tee fitting features high-quality Alloy 400 material, ensuring durability and corrosion resistance. With precise 1/4 TF and 1/8-27 FNPT connections, it guarantees a secure and leak-free connection. The Tee shape offers versatility in various applications, meeting the stringent requirements of institutional buyers.

Product Specifications

Inflatable Plug Warning Inflatable Plug Warning

Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flexâ¢ Inflatable Plug inserted fully into pipeline will begin slipping between 50 % and 80 % of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50 % of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.

Note Note

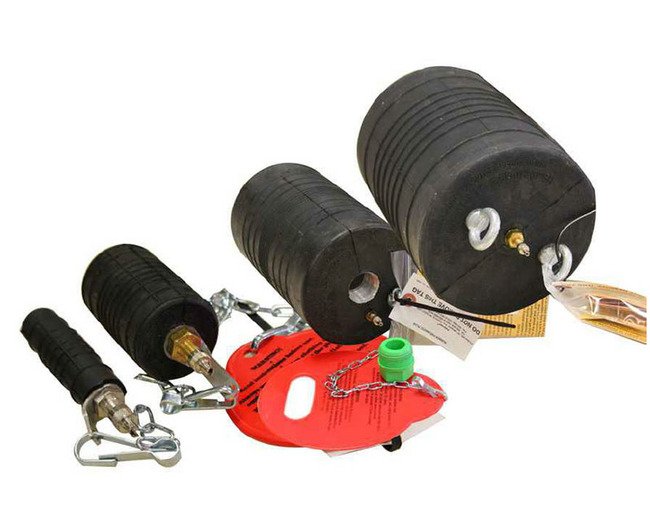

Multi-Size Pneumatic Sealing Plugs Without By-Pass

Specifications Deflated Length

5.1 in | 130 mm

Specifications Maximum Pipeline Head

34 ft | 10.4 m

Specifications Maximum Pipe Diameter

4 in | 102 mm

Specifications Minimum Pipe Diameter

2.8 in | 72 mm

Specifications Plug Diameter

2.8 in | 72 mm

Specifications Required Inflation

36 psig

Specifications Shipping Weight

1 lb

Specifications Valve Type

Tire

Duolok Female Run Tee - Alloy 400, 1/4 TF x 1/8-27 FNPT x 1/4 TF
