Duolok Male Adapter - Alloy 400, 6mm Tube Stub x 1/8-27 MNPT
Duolok Male Adapter - Alloy 400, 6mm Tube Stub x 1/8-27 MNPT
SKU:MUL-25949a
Duolok Male Adapter - Reliable Alloy 400 fitting for 6mm Tube Stub x 1/8-27 MNPT connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok Male Adapter - Alloy 400, 6mm Tube Stub x 1/8-27 MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Duolok Male Adapter - Alloy 400, 6mm Tube Stub x 1/8-27 MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Male Adapter is a precision-engineered fitting designed for seamless tube connections in instrumentation applications. Made of durable Alloy 400, this fitting ensures reliable performance and corrosion resistance. With a 6mm Tube Stub and 1/8-27 MNPT connection sizes, it offers a secure and leak-free joint. The straight shape and compact dimensions make installation easy and efficient, meeting the demanding requirements of industrial operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features

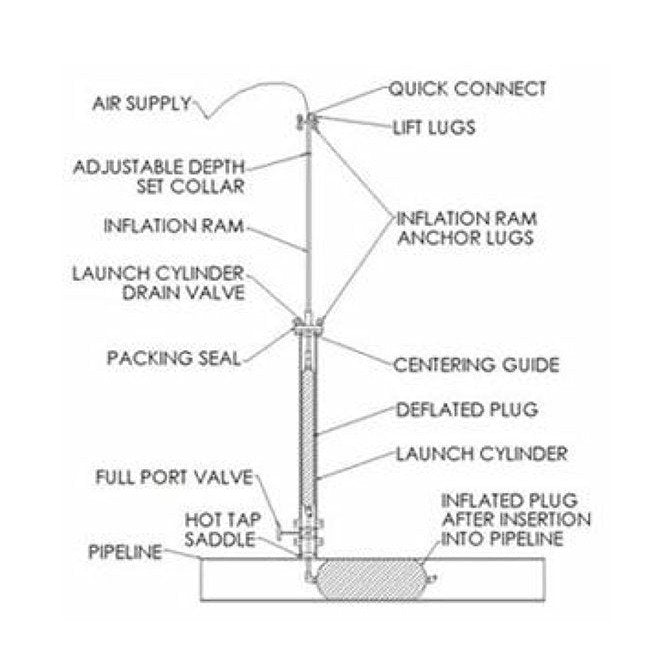

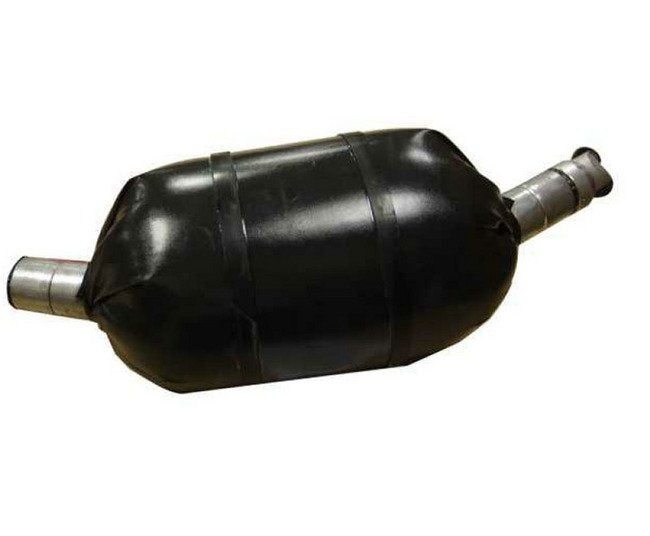

Easy hot tap (live) insertionStops flow for repairsSmall deflated diameterFlexibility allows navigation around cornersTough materials for long lifeThese plugs are generally made with a Nylon reinforced Polyurethane outer ply. Many other materials and sizes available.May not provide a perfect seal for pipeline testing without customization
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
Other sizes and custom configurations also available
Specifications Deflated Length
46 in | 1168 mm
Specifications Hot Tap Plug Diameter
5.5 in | 140 mm
Specifications Inflation Port
2 M
Specifications Maximum Inflation
90 psig | 6.2 bar
Specifications Maximum Pipeline Head
103 ft | 31.3 m
Specifications Maximum Plug Diameter
12 in | 305 mm
Specifications Shipping Weight
30 lb
