Duolok Male Branch Tee - Alloy 400, 12mm x 12mm x 1/4-18 MNPT
Duolok Male Branch Tee - Alloy 400, 12mm x 12mm x 1/4-18 MNPT
SKU:130-dd3f76
Premium Alloy 400 Male Branch Tee - 12mm to 1/4-18 MNPT, Ensures Leak-Free Connections, Industry-Compliant
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Duolok Male Branch Tee - Alloy 400, 12mm x 12mm x 1/4-18 MNPT
$34.99
Quantity: 1
Claim Your Seller Account
Duolok Male Branch Tee - Alloy 400, 12mm x 12mm x 1/4-18 MNPT
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Male Branch Tee is a high-quality instrumentation tube fitting made of Alloy 400, designed for a secure connection between 12mm tubes and a 1/4-18 MNPT port. With precise dimensions including Bx: 25.9mm, By: 25.9mm, and T: 12mm, this tee ensures a leak-free and durable fitting solution. Engineered for reliability and longevity, it meets stringent industry standards and is ideal for demanding applications in fluid systems.
Product Specifications
Features Features

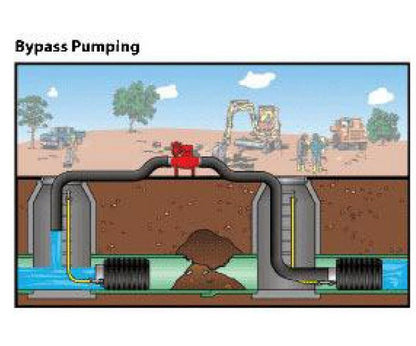

Multi-Size Large Flow-Through Bypass Plugs with Interchangeable FlangesMulti-size offer great expansion rangeLightweight aluminum bypassFeature interchangeable bypass flange, allowing the same plug to be used for different applicationsRemovable tire valve allows for easy replacementMade with Natural Rubber
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
NPT bypass plugs threaded on one end only.Caps/plugs provided on sizes through 6" bypass
Specifications By Pass Diameter
6 in MNPT
Specifications Chain Eye Bolts
3/8 in (1)
Specifications Deflated Diameter
10.25 in | 260 mm
Specifications Deflated Length
17.88 in | 454 mm
Specifications Inflation Pressure
30 psi | 2.1 bar
Specifications Inflation Thread
1/4 in (1)
Specifications Maximum Back Pressure
11 psi | 0.76 bar | 25 ft | 7.6 m
Specifications Nominal Size
12 to 15 in | 300 to 380 mm
Specifications Range Of Use
10.62 to 15.25 in | 300 to 380 mm
Specifications Shipping Weight
22 lb
