Duolok Male Branch Tee - Brass, 1/4 in x 1/4 in x 1/8-27 MNPT
Duolok Male Branch Tee - Brass, 1/4 in x 1/4 in x 1/8-27 MNPT
SKU:137-607348
Enhance your fluid system with Duolok Male Branch Tee - Brass, 1/4in x 1/4in x 1/8-27 MNPT. Reliable, leak-free connections.
Regular price
$14.83
Regular price
Sale price
$14.83
Unit price
per
Initiate Order
Duolok Male Branch Tee - Brass, 1/4 in x 1/4 in x 1/8-27 MNPT
$14.83
Quantity: 1
Claim Your Seller Account
Duolok Male Branch Tee - Brass, 1/4 in x 1/4 in x 1/8-27 MNPT
$14.83
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid system with the Duolok Male Branch Tee. This brass tee features a 1/4 inch tube fitting on both ends and a 1/8-27 MNPT male connection, ensuring secure and leak-free installations. Precision-engineered for reliability, it meets strict industrial standards, making it ideal for demanding applications in laboratories, manufacturing, and more.
Product Specifications
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50 % and 80 % of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50 % of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note

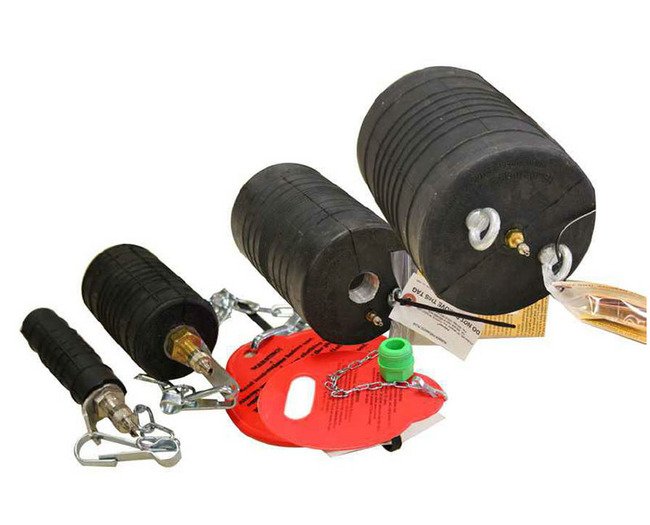

Single Size Pneumatic Sealing Plugs without By-Pass
Specifications Deflated Length
4 in | 102 mm
Specifications Maximum Pipeline Head
34 ft | 10.4 m
Specifications Maximum Pipe Diameter
2 in | 51 mm
Specifications Minimum Pipe Diameter
1.8 in | 46 mm
Specifications Plug Diameter
1.8 in | 46 mm
Specifications Required Inflation
36 psig
Specifications Shipping Weight
1 lb

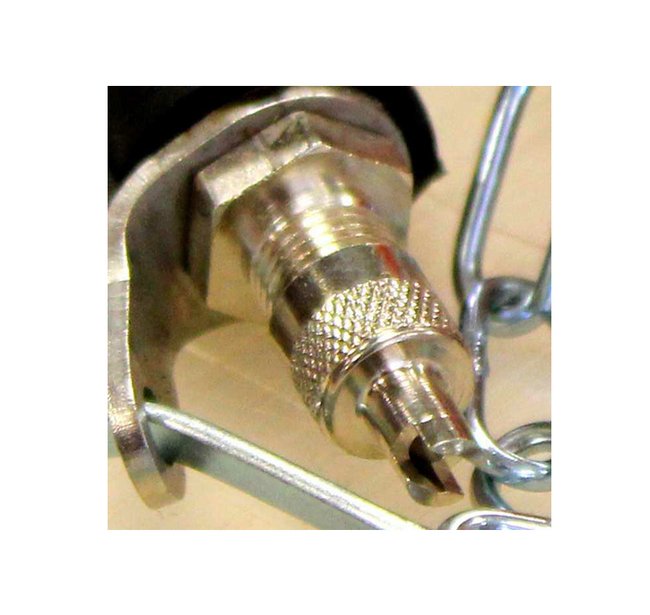

Specifications Valve Type
Tire
