Duolok Male Branch Tee - Stainless Steel 316
Duolok Male Branch Tee - Stainless Steel 316
SKU:138-1400f4
Premium Duolok Male Branch Tee for instrumentation tubing, 316 SS, 1/4 in fittings, MNPT connection - durable & efficient.
Regular price
$39.43
Regular price
Sale price
$39.43
Unit price
per
Initiate Order
Duolok Male Branch Tee - Stainless Steel 316
$39.43
Quantity: 1
Claim Your Seller Account
Duolok Male Branch Tee - Stainless Steel 316
$39.43
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Male Branch Tee is designed for precise tube connections in instrumentation applications. Constructed from high-quality 316 SS, it ensures durability and resistance to corrosion. With 1/4 in tube fittings and 1/4-18 MNPT connection, this tee offers reliable performance and easy installation. Its tee shape provides a seamless flow path, enhancing operational efficiency. Ideal for diverse industrial settings, this fitting meets stringent quality standards for long-lasting reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Inflatable Plug Warning Inflatable Plug Warning

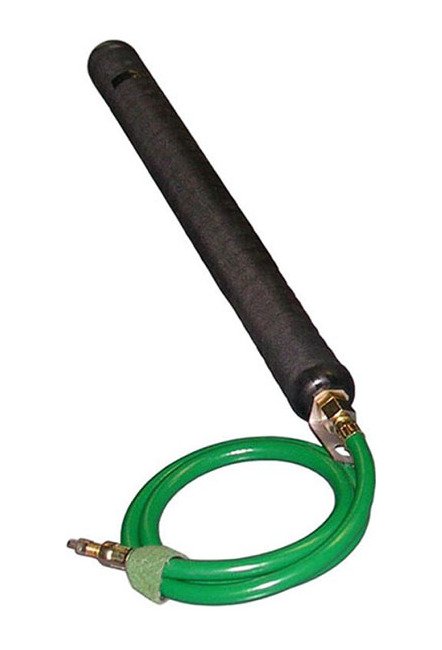

Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50 % and 80 % of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50 % of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note

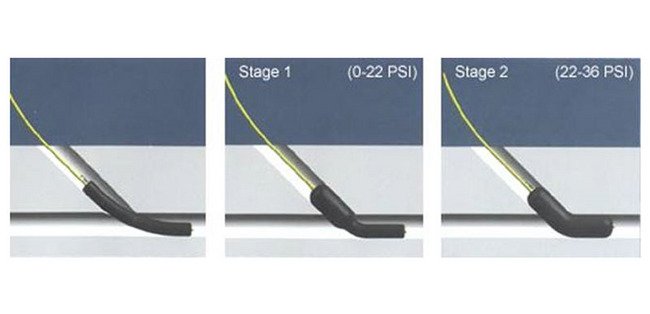

Included hose is 3' in lengthTwo-stage control - Inflate the plug as shown...stage 1 seals one side of the "Y" at about 22 PSI, to prevent outflow inflate to 36 PSI and the mainline is also blocked.
Specifications Deflated Length
22 in | 559 mm
Specifications Maximum Pipeline Head
34 ft | 10.4 m
Specifications Maximum Pipe Diameter
3 in | 76 mm
Specifications Minimum Pipe Diameter
1.75 in | 45 mm
Specifications Plug Diameter
1.6 in | 41 mm
Specifications Required Inflation
36 psig
Specifications Shipping Weight
2 lb
Specifications Valve Type
Tire
