Duolok Male Branch Tee with 3/16in Tube Fitting x 1/8in MNPT
Duolok Male Branch Tee with 3/16in Tube Fitting x 1/8in MNPT
SKU:130-f1bdb2
Premium Duolok Male Branch Tee for precise instrument connections. Alloy C-276 construction with 3/16in Tube Fitting x 1/8in MNPT size.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Duolok Male Branch Tee with 3/16in Tube Fitting x 1/8in MNPT
$29.99
Quantity: 1
Claim Your Seller Account
Duolok Male Branch Tee with 3/16in Tube Fitting x 1/8in MNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Male Branch Tee is a high-quality fitting designed for seamless connectivity in instrumentation applications. Crafted from Alloy C-276, it ensures durability and precision. With Tube Fitting sizes of 3/16 inches and MNPT size of 1/8 inches, this tee offers reliable connections. Its Tee shape and compact dimensions make it ideal for tight spaces. Trust Duolok for superior performance and longevity.
Product Specifications
Features Features

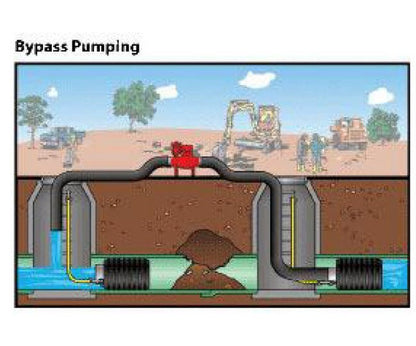

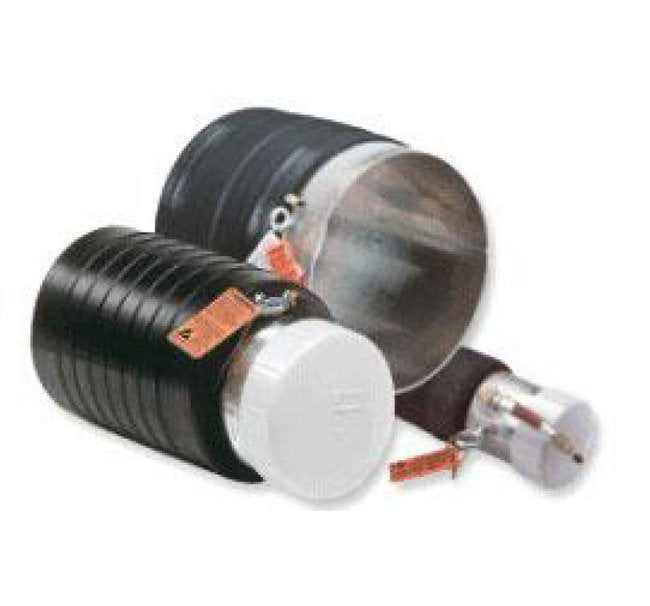

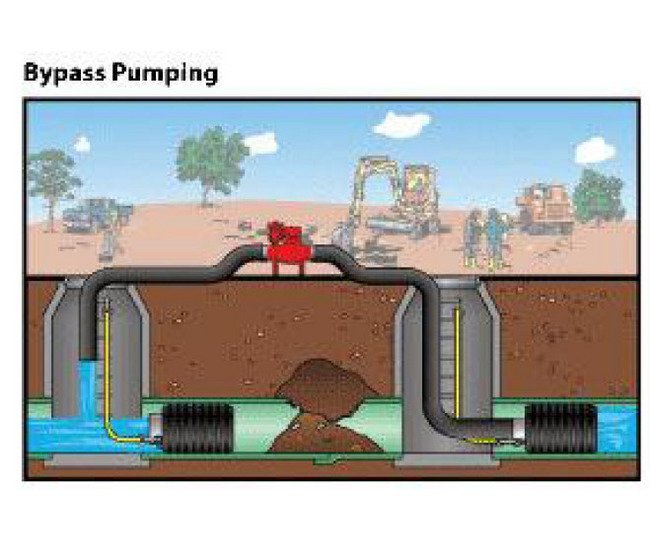

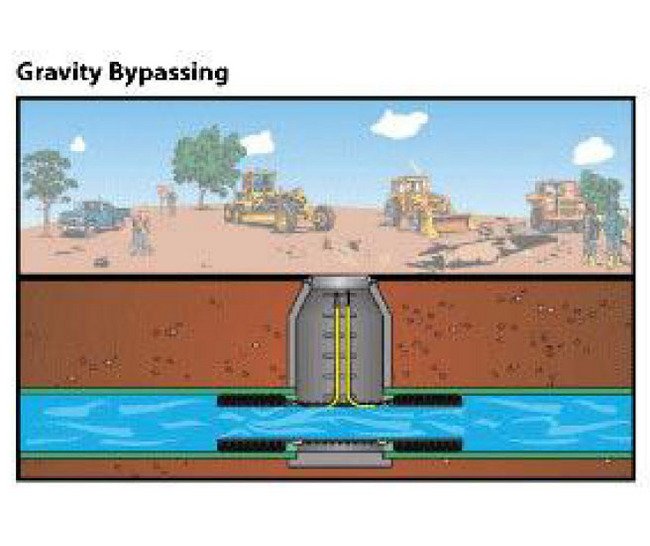

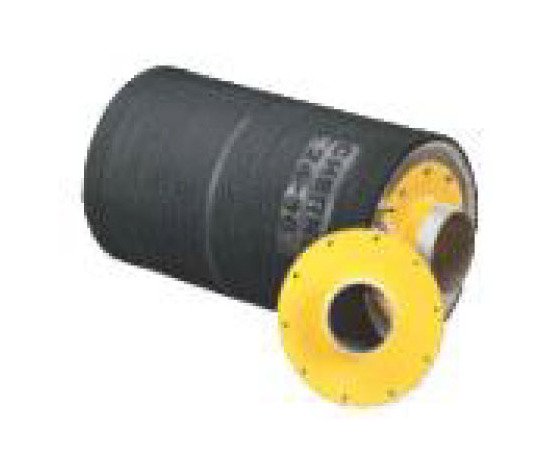

Multi-Size Large Flow-Through Bypass Plugs with Interchangeable FlangesMulti-size offer great expansion rangeLightweight aluminum bypassFeature interchangeable bypass flange, allowing the same plug to be used for different applicationsRemovable tire valve allows for easy replacementMade with Natural Rubber
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
NPT bypass plugs threaded on one end only.Caps/plugs provided on sizes through 6" bypass
Specifications By Pass Diameter
4 in MNPT
Specifications Chain Eye Bolts
3/8 in (1)
Specifications Deflated Diameter
5.65 in | 146 mm
Specifications Deflated Length
24.5 in | 622 mm
Specifications Inflation Pressure
40 psi | 2.8 bar
Specifications Inflation Thread
1/4 in (1)
Specifications Maximum Back Pressure
10 psi | 0.69 bar | 23 ft | 10 m
Specifications Nominal Size
6 to 10 in | 150 to 250 mm
Specifications Range Of Use
5.75 to 10.25 in | 146 to 260 mm
Specifications Shipping Weight
15 lb
