Premium Duolok Male Connector SAE - Alloy C-276, 3/8 Tube Fitting x 1/4 Male SAE
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Duolok Male Connector SAE - Alloy C-276, Tube Fitting x Male SAE 1/4 in
$34.99
Quantity: 1
Claim Your Seller Account
Duolok Male Connector SAE - Alloy C-276, Tube Fitting x Male SAE 1/4 in
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Male Connector SAE is expertly crafted from Alloy C-276, ensuring durability and corrosion resistance. Featuring a 3/8 in Tube Fitting connected to a 1/4 in Male SAE, this straight-shaped connector guarantees a secure and leak-free connection. With precise dimensions meeting industry standards, this fitting is ideal for instrumentation applications requiring reliability and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features

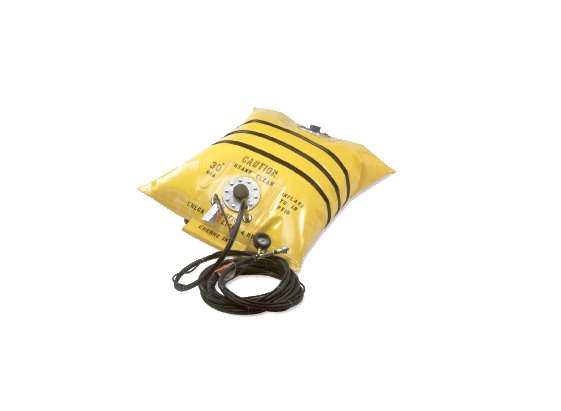

Equipped with a special 30' inflation hose, 30' read-back line, and gaugeA repair kit is available to fix small tears and puncturesMuni-Ball® style plugs feature a bypass with threaded nipples on both endsMade with heavy-duty Urethane rubber
Inflatable Plug Warning Inflatable Plug Warning

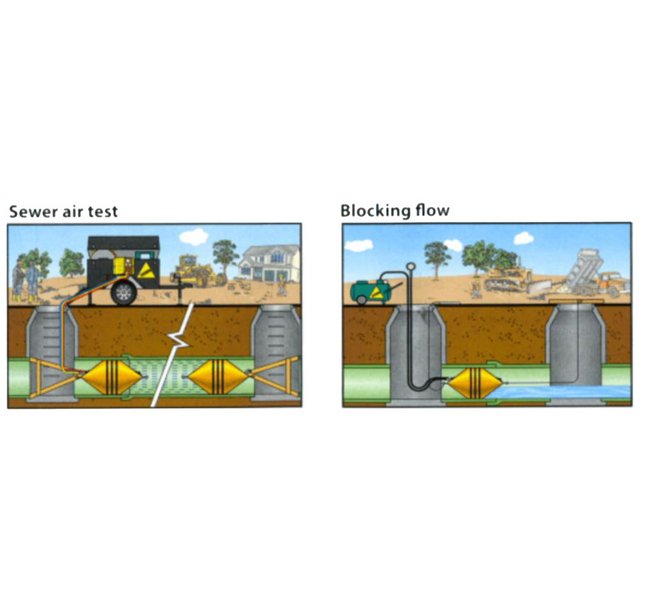

Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
Custom sizes also availableLarge single-size plugs are not suitable for leak location or vacuum testing.Always block plugs when conducting air tests.
Specifications By Pass Diameter
2 1/2 in Female National Pipe Thread (FNP)
Specifications Deflated Diameter
12 in | 305 mm
Specifications Deflated Length
95 in | 2413 mm
Specifications Inflation Pressure
13 ft | 4 m | 12 psi | 0.83 bar
Specifications Inflation Thread
1/2 in (1)
Specifications Maximum Back Pressure
5.6 psi | 0.4 bar
Specifications Nominal Size
48 in | 1200 mm
Specifications Range Of Use
47.04 to 50 in | 1195 to 1270 mm
Specifications Shipping Weight
132 lb
