Duolok Male Connector SAE - Brass, 5/8 Tube x 7/8-14 Male SAE
Duolok Male Connector SAE - Brass, 5/8 Tube x 7/8-14 Male SAE
SKU:130-798a79
Duolok Male Connector SAE - Brass, 5/8 Tube x 7/8-14 Male SAE. Reliable, leak-free brass connector meeting top industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Duolok Male Connector SAE - Brass, 5/8 Tube x 7/8-14 Male SAE
$29.99
Quantity: 1
Claim Your Seller Account
Duolok Male Connector SAE - Brass, 5/8 Tube x 7/8-14 Male SAE
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Male Connector SAE is crafted from durable brass, ensuring reliability in demanding environments. With a 5/8 tube fitting on one end and a 7/8-14 male SAE connection on the other, this straight-shaped connector guarantees secure and leak-free connections. Measuring 1.38 inches in length and designed to meet stringent industry standards, this connector offers easy installation and exceptional performance, making it a top choice for instrumentation tube fittings.
Product Specifications
Features Features

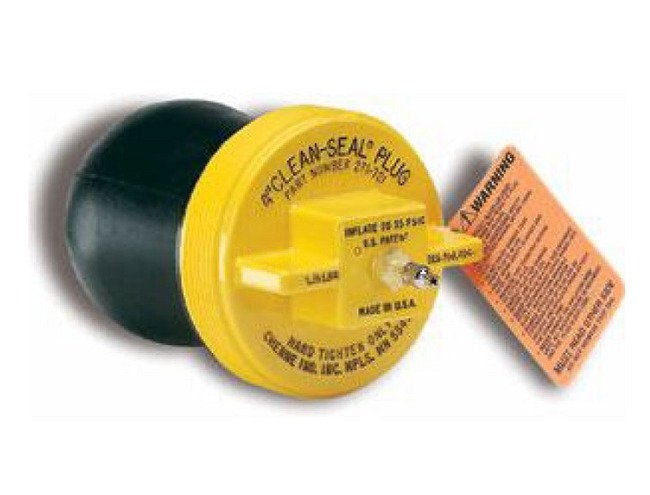

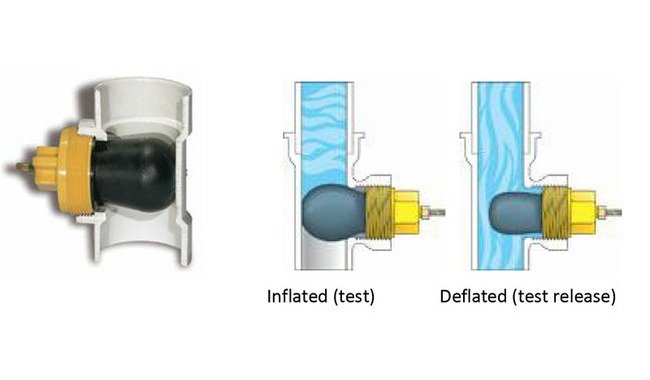

Works in both plastic and cast-iron test tees Natural rubber body provides a leak-free seal High impact ABS threads for maximum durability Removable/replaceable tire inflation valve fitting Always block plugs when conducting air tests.
Inflatable Plug Warning Inflatable Plug Warning
Pipeline Maximum Allowable Back PressureMaximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Specifications Air Pressure
13 psi | 0.9 bar
Specifications Deflated Diameter
4.5 in | 115 mm
Specifications Deflated Length
8.5 in | 215 mm
Specifications Head Pressure
30 ft | 9.1 m
Specifications Nominal Size
4 in | 100 mm
Specifications Required Inflation
35 psig
Specifications Shipping Weight
2 lb
