Duolok Male Elbow - Alloy 400, 16mm x 3/8 MNPT
Duolok Male Elbow - Alloy 400, 16mm x 3/8 MNPT
SKU:MUL-b69e65
Precision Duolok Male Elbow for secure 16mm tubing connections with 3/8 MNPT, Alloy 400 construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Duolok Male Elbow - Alloy 400, 16mm x 3/8 MNPT
$29.99
Quantity: 1
Claim Your Seller Account
Duolok Male Elbow - Alloy 400, 16mm x 3/8 MNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Male Elbow in Alloy 400 is a high-quality instrumentation tube fitting designed for secure connections. With precise 16mm and 3/8 MNPT sizes, this elbow ensures reliable performance. Its robust construction and corrosion-resistant material make it ideal for industrial applications, meeting stringent procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

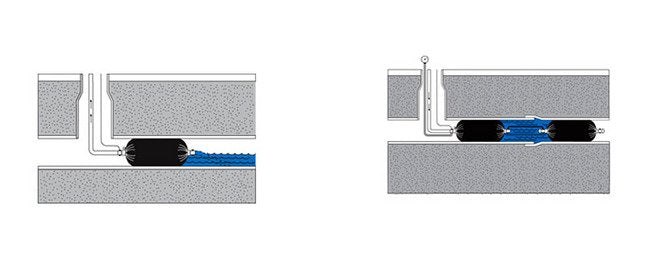

Typically used for plugging of pipelines especially when there is small-restricted access. This is the most flexible plug on the market; it has the greatest multi-size range and will conform to almost any pipe configuration. The very smalldeflated diameter and flexibility allows insertion and removal through a manhole or a live hot tap for plugging otherwise inaccessible pipelines. The by-pass allows flow through by pumping or gravity.
By Pass By Pass

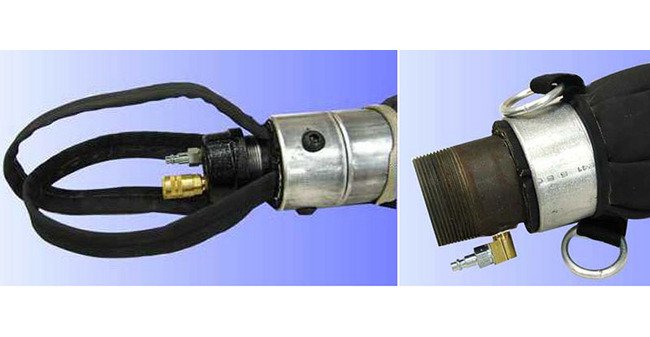

The by-pass design allows flow through during repairs. Flow-thru diameters available up to 3" on standard Multi-Flex⢠plugs and larger sizes on custom configurations.
Custom Configurations Custom Configurations
Custom Flexible and Rigid Plugs may be manufactured for any shape, high temperature, and severe chemical applications.
Diver Friendly Diver Friendly
Small deflated size allows removal of air for easier insertion under water.
Flexibility Flexibility
Deflated Multi-Flex⢠plug easily navigates bends and small openings. A 72" Multi-Flex⢠plug may be inserted through a 15" opening!
Higher Head Pressure Higher Head Pressure
All inflation pressure is applied to the inside wall of the pipe through the Multi-Flex⢠plug. Molded rubber plugs require much of the inflation pressure just to expand the plug.
High Strength Flexible Materials High Strength Flexible Material
Plugs are generally made with Nylon reinforced Nitrile outer ply and have connections for water or air inflation. Many other materials available.
Inflatable Plug Warning 0
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Lightweight Lightweight
Allows one person insertion for most sizes and applications.
Most Sizes Available Most Sizes Available
Standard sizes are generally in stock up to a 48" diameter with larger sizes available in just a few days.
Multi Size Applications Multi Size Applications
Petersen® Multi-Flex⢠plugs may be used in any pipeline larger than the deflated diameter. Some seepage in smaller size pipelines may require a specific size vapor sleeve especially when pressure testing.
Note 0
Custom configurations also available.Item suffix indicates configuration."I" for Ballistic reinforced nitrile outer ply for hydrocarbons and longer life (Standard)."V" for Kevlar® reinforced Fluoroelastomer outer ply: Call for pricing. "N" for nylon reinforced neoprene outer ply: Call for pricing.
Specifications By Pass Connection In National Pipe Thread Npt
3 M
Specifications Deflated Length
119 in | 3023 mm
Specifications Inflation Port In National Pipe Thread Npt
3/8 F - 1/2 QC
Specifications Maximum Inflation
20 psig | 1.4 bar
Specifications Maximum Pipeline Head
23 ft | 7 m
Specifications Maximum Pipe Diameter
36 in | 914 mm
Specifications Minimum Pipe Diameter
10.00 in | 254 mm
Specifications Shipping Weight
156 lb
Vapor Seal Vapor Seal
Specific size vapor seals are available to allow multi-size line testing with one Multi-Flex⢠plug.
