Duolok Male Elbow - Alloy C-276, 1/4 in. TF x 3/8-18 MNPT
Duolok Male Elbow - Alloy C-276, 1/4 in. TF x 3/8-18 MNPT
SKU:MUL-d0d82c
Duolok Male Elbow - Reliable Alloy C-276 fitting for secure TF x MNPT connections in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Duolok Male Elbow - Alloy C-276, 1/4 in. TF x 3/8-18 MNPT
$29.99
Quantity: 1
Claim Your Seller Account
Duolok Male Elbow - Alloy C-276, 1/4 in. TF x 3/8-18 MNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Male Elbow in Alloy C-276 is a high-quality instrumentation tube fitting designed for precision and durability. With a 1/4 inch Tube Fitting on one end and a 3/8-18 MNPT on the other, it ensures secure connections in demanding environments. Its compact design, precise dimensions, and corrosion-resistant Alloy C-276 construction make it ideal for industrial applications that require reliable performance. Compliant with industry standards, this Male Elbow guarantees leak-free operation and long-lasting functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

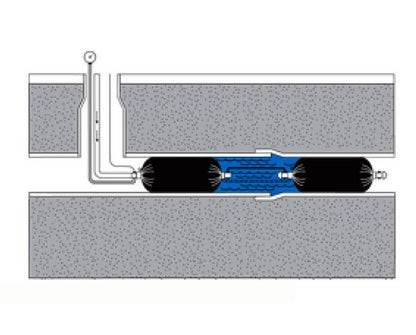

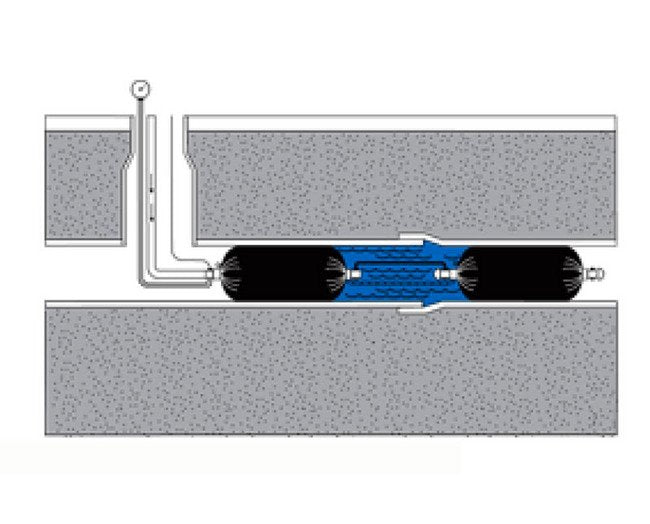

Typically used for plugging or testing of pipelines especially when there is small-restricted access. The Multi-Flex⢠plug is the most flexible plug on the market; it has the greatest multi-size range and will conform to almost any pipe configuration. The small-deflated diameter and flexibility allows insertion and removal through a manhole for plugging otherwise inaccessible pipelines. It is also used as a semi permanent valve to isolate hazardous waste spills. Nylon reinforced Nitrile outer ply provides a long life and an excellent seal for testing. No shelf rot like rubber plugs.
Custom Configurations Custom Configurations
Custom Flexible and Rigid Plugs have been manufactured for many high temperature and severe chemical applications.May not provide a perfect seal for pipeline testing without customization
Diver Friendly Diver Friendly
Small deflated size allows removal of air for easier insertion under water.
Flexibility Flexibility
Deflated Multi-Flex⢠plug easily navigates bends and small openings. A 72â Multi-Flex⢠plug may be inserted through a 10â opening!
Higher Head Pressure Higher Head Pressure
All inflation pressure is applied to the inside wall of the pipe through the Multi-Flex⢠plug. Molded rubber plugs require much of the inflation pressure just to expand the plug.
High Strength Flexible Materials High Strength Flexible Material

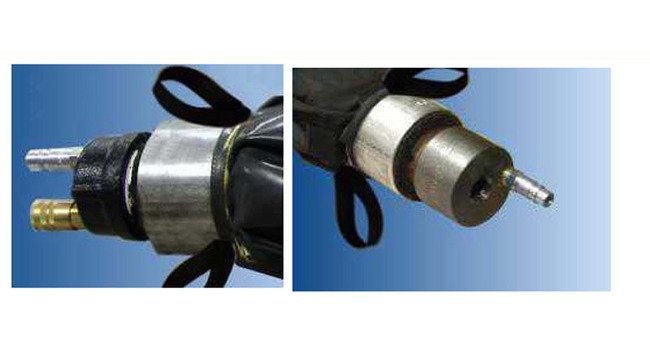

Plugs are generally made with Nylon reinforced Nitrile outer ply and have connections for water or air inflation.
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Lightweight Lightweight
Allows one person insertion for most sizes and applications.
Most Sizes Available Most Sizes Available
Most sizes are available for prompt shipment.
Multi Size Applications Multi Size Applications
Petersen® Multi-Flex⢠plugs may be used in any pipeline larger than the deflated diameter. Allow for some seepage in smaller size pipelines
Note Note
Custom configurations also available.For Integral anchoring harness: Add 25% to price - Suffix "H".
Specifications Deflated Length
59 in | 1498 mm
Specifications Inflation Port In National Pipe Thread Npt
2 M - 1/2 QC
Specifications Maximum Inflation
10 psig | 0.7 bar
Specifications Maximum Pipeline Head
12 ft | 3.5 m
Specifications Maximum Pipe Diameter
24 in | 610 mm
Specifications Minimum Pipe Diameter
6 in | 153 mm
Specifications Shipping Weight
28 lb
