Duolok Male Run Tee - Alloy 400, 3/8
Duolok Male Run Tee - Alloy 400, 3/8
SKU:154-a7d7c2
Experience precision and durability with the Duolok Male Run Tee - Alloy 400, 3/8. Ensure leak-free connections.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Duolok Male Run Tee - Alloy 400, 3/8
$25.99
Quantity: 1
Claim Your Seller Account
Duolok Male Run Tee - Alloy 400, 3/8
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid system with the Duolok Male Run Tee featuring Alloy 400 construction. This Tee boasts precision tube fittings, 3/8-18 MNPT connection, and a Tee shape, ensuring secure and leak-free connections. With dimensions meeting industry standards, it offers reliability and durability for instrumentation applications.
Product Specifications
Inflatable Plug Warning Inflatable Plug Warning

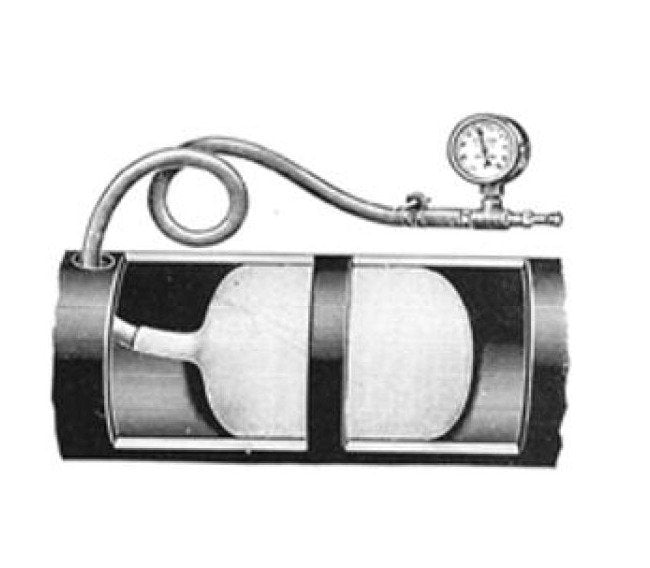

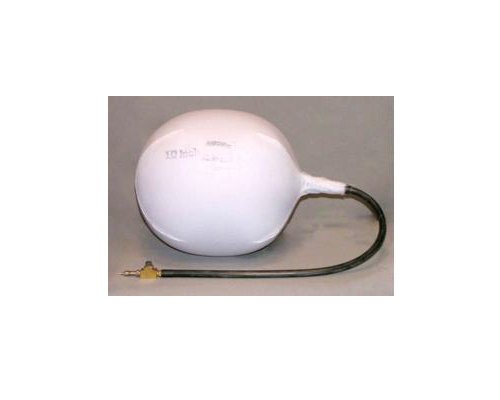

Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi- Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
Gas main line pressure must not exceed 12 in. w.c.Do not inflate plugs over the above pressures.

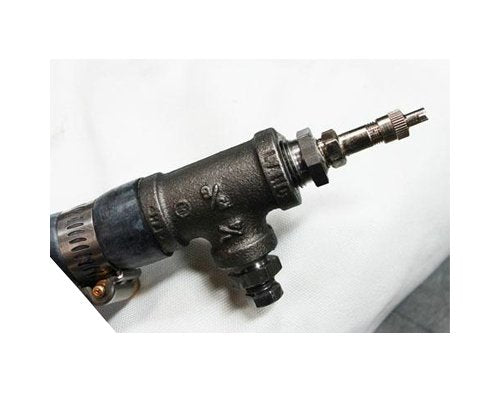

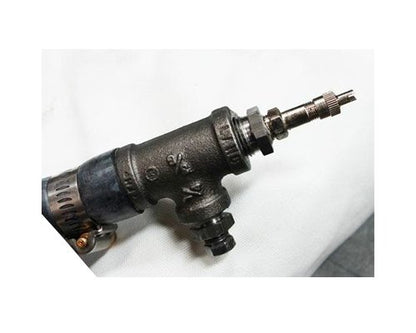

Specifications Inflation Port
Tire
Specifications Maximum Inflation Pressure
6 psig | 0.41 bar
Specifications Maximum Test Head
0.5 ft | 0.15 m
Specifications Pipe Nominal Diameter
14 in | 356 mm
Specifications Shipping Weight
3 lb
Specifications Tap Hole Size
2.5 in | 64 mm
