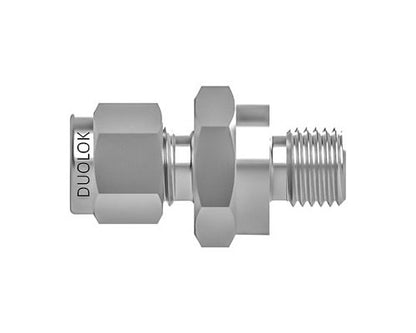

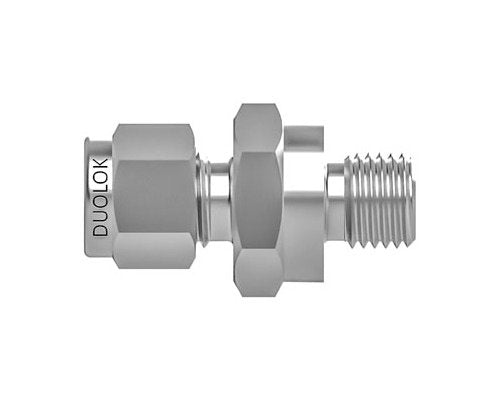

Duolok O-Ring Seal Straight Thread Connector 1/16 x 1/16
Duolok O-Ring Seal Straight Thread Connector 1/16 x 1/16
SKU:FIT-b5eb01
Premium Duolok O-Ring Seal Straight Thread Connector for secure and leak-free tube connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok O-Ring Seal Straight Thread Connector 1/16 x 1/16
$24.99
Quantity: 1
Claim Your Seller Account
Duolok O-Ring Seal Straight Thread Connector 1/16 x 1/16
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok O-Ring Seal Straight Thread Connector is expertly designed for seamless tube connections. Constructed from 316 SS, this connector features 1/16-inch fittings with O-ring sealed straight threads, ensuring a secure and leak-free connection. Its straight shape and precise dimensions make it ideal for instrumentation applications requiring reliability and durability.
Product Specifications

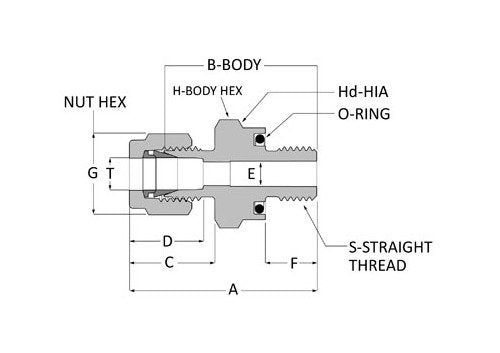

Dimensions A
1.05 in
Dimensions As568 O Ring Uniform Size Number
-011
Dimensions B
0.90 in
Dimensions C
0.43 in
Dimensions D
0.34 in
Dimensions E
0.05 in
Dimensions F
0.34 in
Dimensions G
5/16 in
Dimensions H
9/16 in
Dimensions Hd
0.55 in
Dimensions S
5/16-24
Dimensions T
1/16 in
Specifications Body Material
316 SS
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/16 in
Specifications Connection 2 Type
O-ring Sealed Straight Thread
Specifications D Num
0.34 in
Specifications End Connections
TF x O-ring Sealed Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to O-ring Seal Fitting - Duolok
