Duolok Plastic Tube Insert
Duolok Plastic Tube Insert
SKU:EMI-cf6d92
High-quality Duolok Plastic Tube Insert - 316 SS, 1/4 x 1/8 Tube Barb, for reliable performance in instrumentation fittings.
Regular price
$3.06
Regular price
Sale price
$3.06
Unit price
per
Initiate Order
Duolok Plastic Tube Insert
$3.06
Quantity: 1
Claim Your Seller Account
Duolok Plastic Tube Insert
$3.06
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Plastic Tube Insert in 316 SS is a high-quality instrumentation tube fitting designed for optimal performance. This straight tube insert features a 1/4-inch connection on one end and a 1/8-inch tube barb connection on the other for seamless integration. Its durable construction ensures longevity and reliable operation, making it an ideal choice for various industrial applications.
Product Specifications

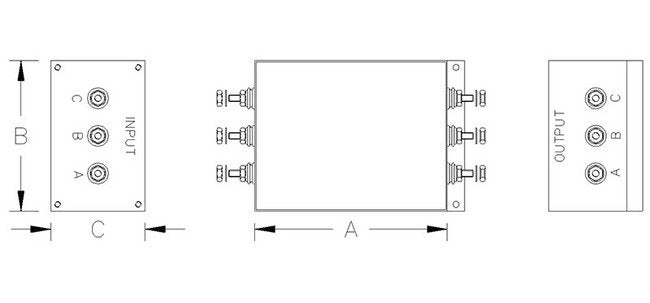

Diagram Diagram
Single L
Insertion Loss Curve Insertion Loss Curve
Insertion Loss Curve Figure 1
Specifications Bracket Mounting Holes Diameter
0.203 in
Specifications Chassis Material
Cold Rolled Steel (CRS)
Specifications Chassis Terminal Finish
Electro Tin-Lead
Specifications Current Rating
25 A
Specifications Dimension A
4.50 in
Specifications Dimension B
6.00 in
Specifications Dimension C
2.50 in
Specifications Dwv
1000 VDC line-to-line & line-to-chassis per MIL-STD-202, Method 301
Specifications Insertion Loss
Per MIL-STD 220
Specifications Insulation Resistance
1500 MO minimum per MIL-STD-202, Method 302
Specifications Operating Temperature
-55 to +71 ºC
Specifications Storage Temperature
-55 to +105 ºC
Specifications Terminal Strength
Per MIL-STD-202, method 211
Specifications Threaded Inserts
10-32 UNF-2B
Specifications Threaded Terminals
10-32 UNF-2A
Specifications Visualmechanical
Per MIL-PRF-15733, Paragraph 4.6.1
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating
120/208 VAC @ 50/60 Hz and 400 Hz
