Duolok Positionable Male Branch Tee - 316 SS, 1/2 x 1/2 x 3/4-16 SAE
Duolok Positionable Male Branch Tee - 316 SS, 1/2 x 1/2 x 3/4-16 SAE
SKU:FIT-dff10e
Premium Duolok Positionable Male Branch Tee - 316 SS, 1/2 x 1/2 x 3/4-16 SAE, for precise instrumentation applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Duolok Positionable Male Branch Tee - 316 SS, 1/2 x 1/2 x 3/4-16 SAE
$34.99
Quantity: 1
Claim Your Seller Account
Duolok Positionable Male Branch Tee - 316 SS, 1/2 x 1/2 x 3/4-16 SAE
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

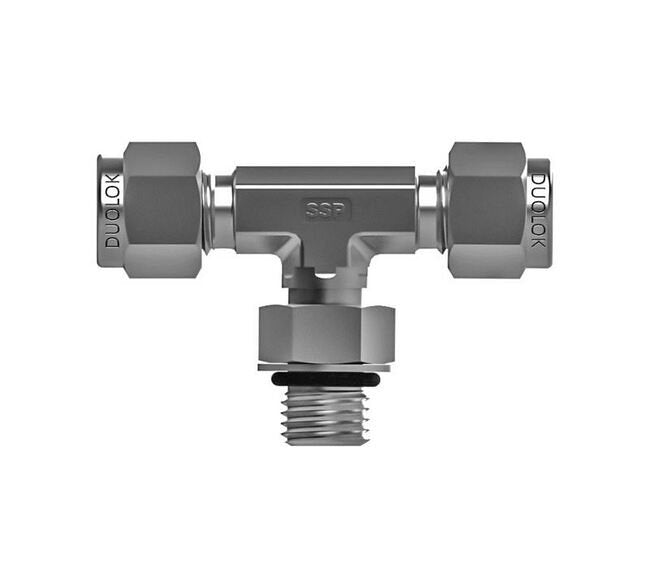

The Duolok Positionable Male Branch Tee is a premium instrumentation tube fitting designed for precise applications where superior corrosion resistance is vital. Constructed from high-grade 316 SS, this tee fitting ensures long-term reliability and leak-free connections. With connections for 1/2-inch tubing and a 3/4-16 Male SAE thread, it offers exceptional versatility and ease of installation. The positionable design allows for optimal alignment in complex piping configurations, making it a top choice for demanding industrial environments.
Ready to Grow Without Cash Flow Constraints?

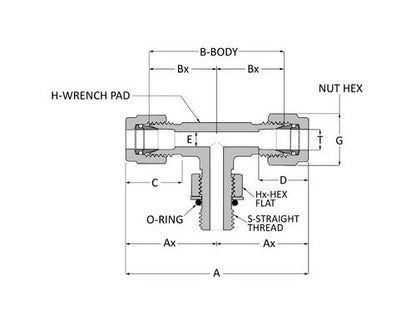

Product Specifications
Dimensions A
2.96 in
Dimensions As568 O Ring Uniform Size Number
-908
Dimensions Ax
1.48 in
Dimensions B
2.16 in
Dimensions Bx
1.08 in
Dimensions C
0.86 in
Dimensions D
0.90 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
13/16 in
Dimensions Hx
7/8 in
Dimensions S
3/4-16
Dimensions T
1/2 in
Specifications Body Material
316 SS
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
Tube Fitting
Specifications Connection 3 Size
3/4 in
Specifications Connection 3 Type
Male SAE
Specifications End Connections
TF x TF x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Tee
Category 6
Tube Fitting to SAE Thread Fitting - Duolok
