Duolok Positionable Male Branch Tee - Brass, 3/4 in Tube Fitting x 3/4 in Tube Fitting x 1 1/16-12 Male SAE

Name: Duolok Positionable Male Branch Tee - Brass, 3/4 in Tube Fitting x 3/4 in Tube Fitting x 1 1/16-12 Male SAE
Brand: SSP Fittings Corp.
SKU: FIT-55ed02
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-55ed02

Premium brass Positionable Male Branch Tee for precise fluid system connections. 3/4 in Tube Fitting x 3/4 in Tube Fitting x 1 1/16-12 Male SAE.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Duolok Positionable Male Branch Tee is a high-quality brass fitting designed for precision in instrumentation applications. This tee boasts connections for 3/4-inch tubing on both ends and a 1 1/16-12 Male SAE fitting at the branch. Engineered with durability in mind, it offers a reliable and leak-free solution for fluid system setups. The tee's shape ensures efficient flow and the ability to adjust positioning, making it ideal for demanding industrial environments.

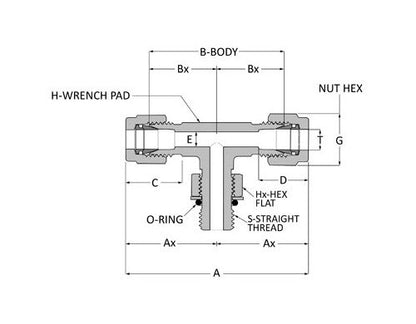

Product Specifications

Dimensions A

3.26 in

Dimensions As568 O Ring Uniform Size Number

-912

Dimensions Ax

1.63 in

Dimensions B

2.46 in

Dimensions Bx

1.23 in

Dimensions C

0.86 in

Dimensions D

0.96 in

Dimensions E

0.62 in

Dimensions G

1 1/8 in

Dimensions H

1 1/16 in

Dimensions Hx

1 1/4 in

Dimensions S

1 1/16-12

Dimensions T

3/4 in

Specifications Body Material

Brass

Specifications Brand Series

Duolok

Specifications Connection 1 Size

3/4 in

Specifications Connection 1 Type

Tube Fitting

Specifications Connection 2 Size

3/4 in

Specifications Connection 2 Type

Tube Fitting

Specifications Connection 3 Size

1 1/16 in

Specifications Connection 3 Type

Male SAE

Specifications End Connections

TF x TF x Male SAE

Specifications Handle Color

Specifications Handle Type

Specifications Production Category

Specifications Shape

Tee
