Duolok Positionable Male Run Tee - 316 SS, Tube Fitting to SAE Thread Fitting
Duolok Positionable Male Run Tee - 316 SS, Tube Fitting to SAE Thread Fitting
SKU:FIT-a95ff2
High-quality Duolok Positionable Male Run Tee with 316 SS construction for secure and flexible tube connections in instrumentation applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Duolok Positionable Male Run Tee - 316 SS, Tube Fitting to SAE Thread Fitting
$49.99
Quantity: 1
Claim Your Seller Account
Duolok Positionable Male Run Tee - 316 SS, Tube Fitting to SAE Thread Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

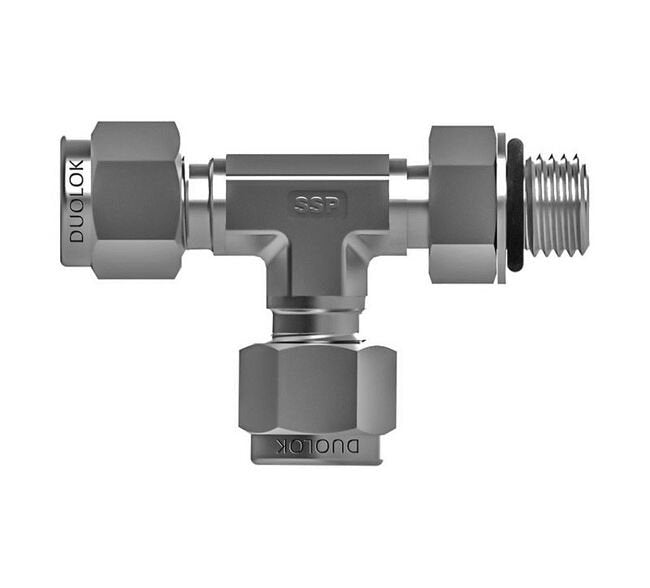

The Duolok Positionable Male Run Tee is expertly crafted from high-grade 316 SS, ensuring exceptional durability and corrosion resistance. This tee features 1-inch tube fittings on both ends and a 1 1/16-12 Male SAE thread fitting in the center, providing a secure and versatile connection. Its unique positionable design allows for flexible configurations, making it ideal for various instrumentation applications. Trust in the quality and precision of Duolok for reliable performance in demanding environments.

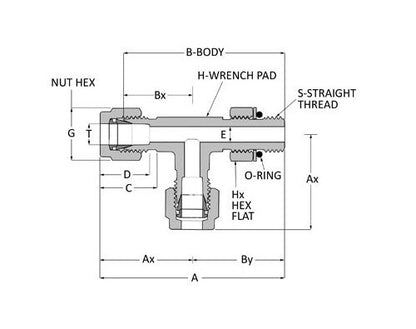

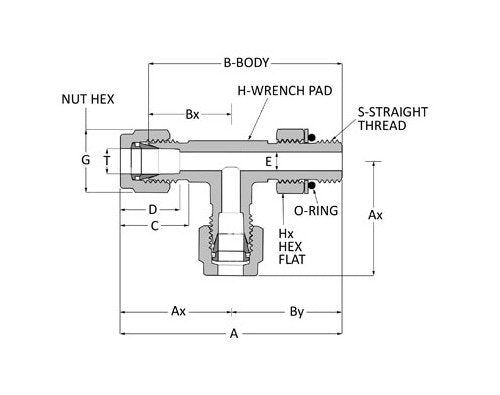

Product Specifications
Dimensions A
4.10 in
Dimensions As568 O Ring Uniform Size Number
-916
Dimensions Ax
1.99 in
Dimensions B
3.62 in
Dimensions Bx
1.51 in
Dimensions By
2.11 in
Dimensions C
1.04 in
Dimensions D
1.23 in
Dimensions E
0.88 in
Dimensions G
1 1/2 in
Dimensions H
1 3/8 in
Dimensions Hx
1 1/2 in
Dimensions S
1 5/16-12
Dimensions T
1 in
Specifications Body Material
316 SS
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1 in
Specifications Connection 2 Type
Male SAE
Specifications Connection 3 Size
1 in
Specifications Connection 3 Type
Tube Fitting
Specifications D Num
1.23 in
Specifications End Connections
TF x Male SAE x Tube Fitting
Specifications G Num
1 1/2 in
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Tee
Specifications T Num
1 in
Category 6
Tube Fitting to SAE Thread Fitting - Duolok
