Duolok® 2-Inch Bonded Washer, 316 SS/Viton
Duolok® 2-Inch Bonded Washer, 316 SS/Viton
SKU:HIG-adbfb7
Duolok® 2-Inch Bonded Washer: Precision sealing with 316 SS/Viton materials for reliable, leak-free connections in instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Duolok® 2-Inch Bonded Washer, 316 SS/Viton
$29.99
Quantity: 1
Claim Your Seller Account
Duolok® 2-Inch Bonded Washer, 316 SS/Viton
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok® 2-Inch Bonded Washer is a premium component designed for precision sealing in instrumentation applications. Crafted from high-grade 316 stainless steel with a Viton O-ring, this washer ensures reliable performance and durability. Its precise dimensions and quality materials make it ideal for industrial settings where sealing integrity is paramount. Compliant with stringent industry standards, this washer guarantees leak-free connections and long-term reliability.

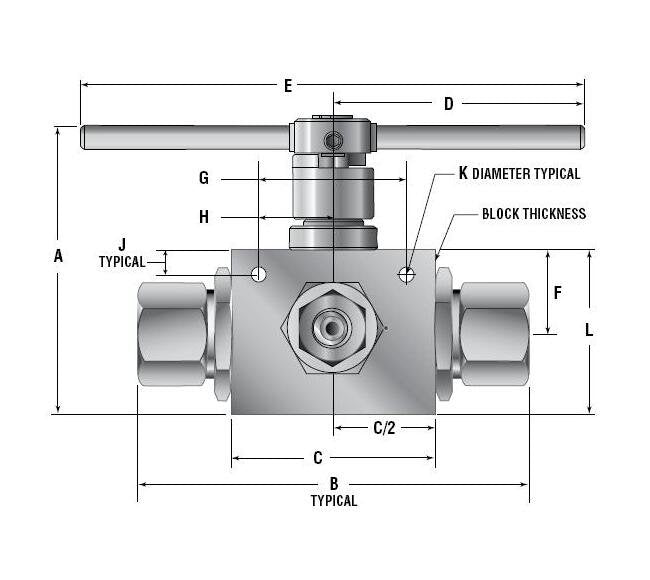

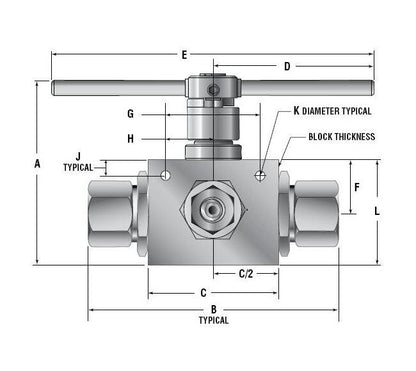

Product Specifications
Specifications A Height
5.81 in | 147.57 mm
Specifications A Panel Mounting Dimension
2.63 in | 66.68 mm
Specifications Block Thickness
3.50 in | 88.90 mm
Specifications B Length
6.79 in | 172.47 mm
Specifications B Panel Mounting Dimension
1.31 in | 33.34 mm
Specifications Connection Type
SF562CX20
Specifications C Panel Mounting Dimension
1.88 in | 47.63 mm
Specifications C Width
3.50 in | 88.90 mm
Specifications D Length
5.13 in | 130.30 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
M9
Specifications E Length
10.25 in | 260.35 mm
Specifications F Height
1.63 in | 41.40 mm
Specifications G Spacing Of Holes
2.63 in | 66.80 mm
Specifications H Dimension
1.31 in | 33.27 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
2.97 in | 75.44 mm
Specifications Mawp At Room Temperature
10000 psi | 690 bar
Specifications Minimum Orifice
0.312 in | 7.92 mm
Specifications Orifice
3/8 in
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Valve Maintenance 0
Repair Kits: add âRâ to the front of valve catalog first 4 (5 for switching) numbers for proper repair kit. (Example: R4B6S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 120 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) Note: Consult factory for additional actuator information. High Temperature Option: HT - for media temperature up to 500°F (260°C)
