Duolok Tube Fitting Back Ferrule - 50mm Alloy 400
Duolok Tube Fitting Back Ferrule - 50mm Alloy 400
SKU:HIG-b6524c
High-quality Duolok Tube Fitting Back Ferrule, 50mm Alloy 400. Ensures reliable and secure tubing connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok Tube Fitting Back Ferrule - 50mm Alloy 400
$24.99
Quantity: 1
Claim Your Seller Account
Duolok Tube Fitting Back Ferrule - 50mm Alloy 400
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Tube Fitting Back Ferrule in 50mm size, made of Alloy 400, ensures reliable connections in demanding environments. Designed as a precision back ferrule, it guarantees a secure fit for instrumentation tubing. The Duolok series from SSP Corp. is known for its durability and ease of installation, making it ideal for industrial applications where quality is paramount.
Ready to Grow Without Cash Flow Constraints?

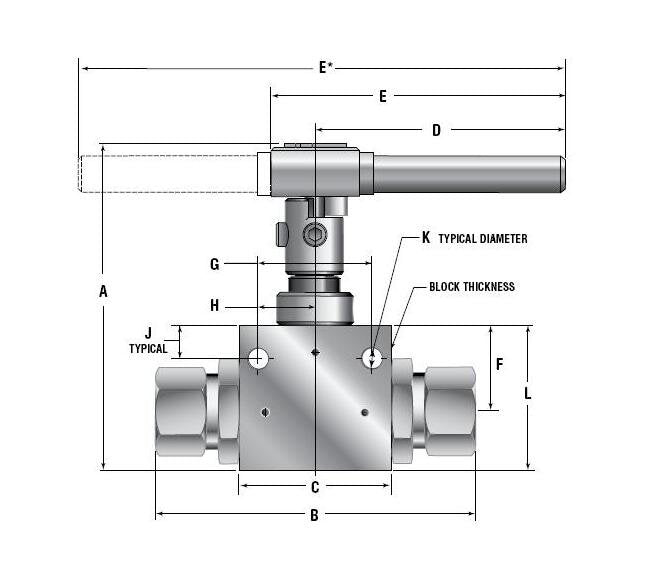

Product Specifications
Specifications A Height
4.97 in | 126.24 mm
Specifications A Panel Mounting Dimension
2.00 in | 50.80 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
5.53 in | 140.46 mm
Specifications B Panel Mounting Dimension
1.00 in | 25.40 mm
Specifications Connection Type
SF375CX20
Specifications C Panel Mounting Dimension
1.50 in | 38.10 mm
Specifications C Width
3.00 in | 76.20 mm
Specifications D Length
4.99 in | 126.75 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
M6
Specifications E Length
5.52 in | 140.21 mm
Specifications F Height
1.38 in | 35.05 mm
Specifications G Spacing Of Holes
2.00 in | 50.80 mm
Specifications H Dimension
1 in | 25.40 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
2.50 in | 63.50 mm
Specifications Mawp At Room Temperature
20000 psi | 1379 bar
Specifications Minimum Orifice
0.203 in | 5.16 mm
Specifications Orifice
3/8 in
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Valve Maintenance 0
Repair Kits: add âRâ to the front of valve catalog first 4 numbers for proper repair kit. (Example: R2B6S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 20 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) High Temperature Option: HT - for media temperature up to 500°F (260°C) See ball valve actuator section for full description, additional information, and options.
