Duolok Tube Fitting Back Ferrule - Alloy 400, 5/16 in.
Duolok Tube Fitting Back Ferrule - Alloy 400, 5/16 in.
SKU:HIG-71a7e5
High-quality Alloy 400 Duolok Back Ferrule for secure 5/16 in. tube connections. Corrosion-resistant and reliable for industrial use.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Duolok Tube Fitting Back Ferrule - Alloy 400, 5/16 in.
$14.99
Quantity: 1
Claim Your Seller Account
Duolok Tube Fitting Back Ferrule - Alloy 400, 5/16 in.
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Tube Fitting Back Ferrule in Alloy 400, with a fitting size of 5/16 inch, is a durable and reliable component designed for secure tube connections. Crafted to meet the rigorous demands of instrumentation applications, this back ferrule ensures leak-free performance. The Alloy 400 construction offers exceptional corrosion resistance, making it ideal for industrial settings. Trust the Duolok brand for quality and precision in every connection.
Ready to Grow Without Cash Flow Constraints?

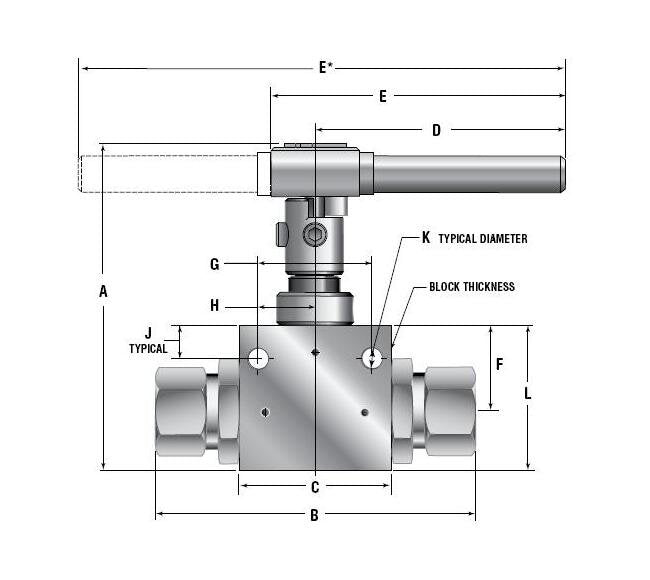

Product Specifications
Specifications A Height
4.33 in | 109.98 mm
Specifications A Panel Mounting Dimension
1.50 in | 38.10 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
4.19 in | 106.43 mm
Specifications B Panel Mounting Dimension
0.75 in | 19.05 mm
Specifications Connection Type
3/8 NPT
Specifications C Panel Mounting Dimension
1.06 in | 26.92 mm
Specifications C Width
2.00 in | 50.80 mm
Specifications D Length
3.37 in | 85.60 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
P6
Specifications E Length
3.90 in | 99.06 mm
Specifications F Height
1.13 in | 28.70 mm
Specifications G Spacing Of Holes
1.50 in | 38.10 mm
Specifications H Dimension
0.75 in | 19.05 mm
Specifications J Dimension
0.43 in | 10.92 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
1.91 in | 48.51 mm
Specifications Mawp At Room Temperature
15000 psi | 1034 bar
Specifications Minimum Orifice
0.250 in | 6.35 mm
Specifications Orifice
1/4 in
Specifications Seat Gland Hex
1.00 in | 25.40 mm
Valve Maintenance 0
Repair Kits: add âRâ to the front of valve catalog first 4 numbers for proper repair kit. (Example: R2B4S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 20 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) High Temperature Option: HT - for media temperature up to 500°F (260°C) See ball valve actuator section for full description, additional information, and options.
