Duolok Tube Fitting Front Ferrule - 1 1/2 in. Alloy 400
Duolok Tube Fitting Front Ferrule - 1 1/2 in. Alloy 400
SKU:SOU-85970f
Experience superior fluid system performance with the Duolok Tube Fitting Front Ferrule. Alloy 400, 1 1/2 in. size, Duolok brand series.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Duolok Tube Fitting Front Ferrule - 1 1/2 in. Alloy 400
$39.99
Quantity: 1
Claim Your Seller Account
Duolok Tube Fitting Front Ferrule - 1 1/2 in. Alloy 400
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your instrumentation setup with the Duolok Tube Fitting Front Ferrule in a 1 1/2 in. size. Constructed from durable Alloy 400, this front ferrule ensures secure connections and optimal performance. The Duolok brand series represents quality and reliability in fluid systems, making it ideal for industrial applications. With precise engineering and a commitment to excellence, this front ferrule meets stringent industry standards for seamless integration.

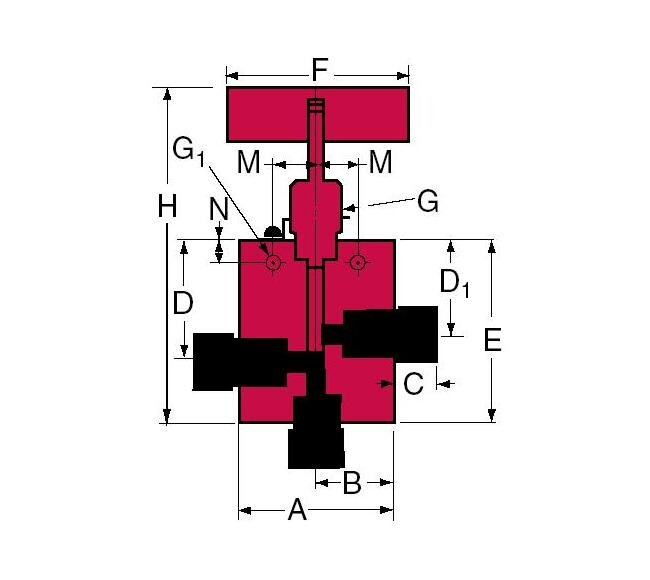

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.56 in | 39.62 mm
Specifications E Height
2.88 in | 73.15 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.49 in | 139.45 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.33
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
