Duolok Tube Fitting Front Ferrules - 1/16 inch, Alloy 400, Duolok Series
Duolok Tube Fitting Front Ferrules - 1/16 inch, Alloy 400, Duolok Series
SKU:SOU-53078b
Enhance your tubing systems with Duolok Front Ferrules: 1/16 inch, Alloy 400 material, Duolok Series. Ensure secure, leak-free connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok Tube Fitting Front Ferrules - 1/16 inch, Alloy 400, Duolok Series
$24.99
Quantity: 1
Claim Your Seller Account
Duolok Tube Fitting Front Ferrules - 1/16 inch, Alloy 400, Duolok Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your tubing systems with Duolok Tube Fitting Front Ferrules. These 1/16 inch front ferrules are designed with high-quality Alloy 400 material, ensuring durability and corrosion resistance in demanding environments. The Duolok Series front ferrules provide a secure fit for instrumentation tube fittings, guaranteeing tight connections and leak-free performance. Ideal for industrial applications requiring precision and reliability.

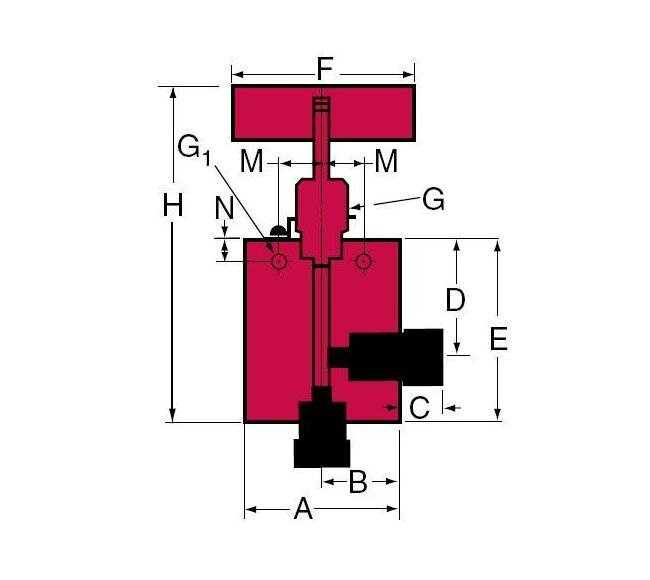

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.12 in | 53.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.74 in | 120.4 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.23
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
