Duolok Tube Fitting Front Ferrules - 1/8 in. 316 SS
Duolok Tube Fitting Front Ferrules - 1/8 in. 316 SS
SKU:SOU-6e3bad
Premium 1/8 in. 316 SS Duolok Front Ferrule for secure and reliable tube connections in instrumentation systems.
Regular price
$1.92
Regular price
Sale price
$1.92
Unit price
per
Initiate Order
Duolok Tube Fitting Front Ferrules - 1/8 in. 316 SS
$1.92
Quantity: 1
Claim Your Seller Account
Duolok Tube Fitting Front Ferrules - 1/8 in. 316 SS
$1.92
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid systems with the Duolok Tube Fitting Front Ferrules designed for precision and durability. Made of high-grade 316 SS, features a 1/8 in. size, and ensures a secure connection with the patented Duolok technology. Ideal for instrumentation applications, these front ferrules offer reliable performance, easy installation, and corrosion resistance. Meet your industry's demands with these top-quality fittings.

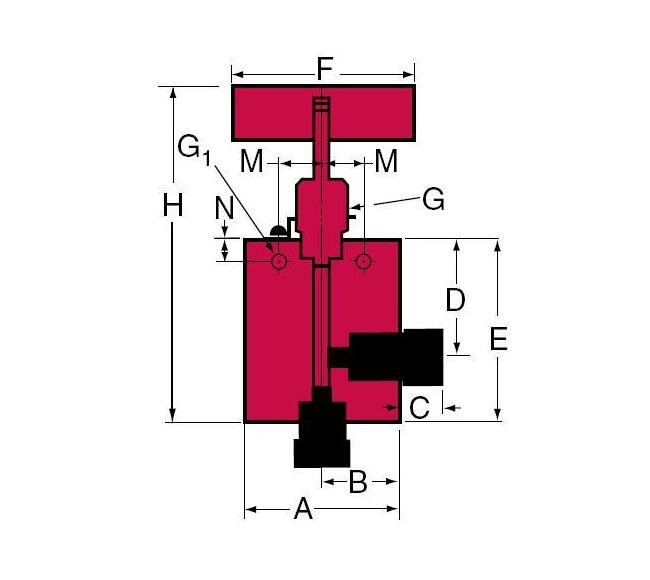

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.62 in | 117.35 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.12
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
