Duolok Tube Fitting Front Ferrules - 10mm, 316 SS, Duolok Series
Duolok Tube Fitting Front Ferrules - 10mm, 316 SS, Duolok Series
SKU:SOU-d2a100
High-performance 10mm Front Ferrules for secure instrumentation connections
Regular price
$1.93
Regular price
Sale price
$1.93
Unit price
per
Initiate Order
Duolok Tube Fitting Front Ferrules - 10mm, 316 SS, Duolok Series
$1.93
Quantity: 1
Claim Your Seller Account
Duolok Tube Fitting Front Ferrules - 10mm, 316 SS, Duolok Series
$1.93
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Tube Fitting Front Ferrules are precision-engineered with 316 SS for durability and reliability. Specifically designed as 10mm Front Ferrules under the renowned Duolok series, these fittings ensure secure connections in instrumentation applications. With a sleek design and exceptional performance, these ferrules guarantee leak-free operations, making them ideal for industrial setups requiring high-quality fittings that meet stringent standards.

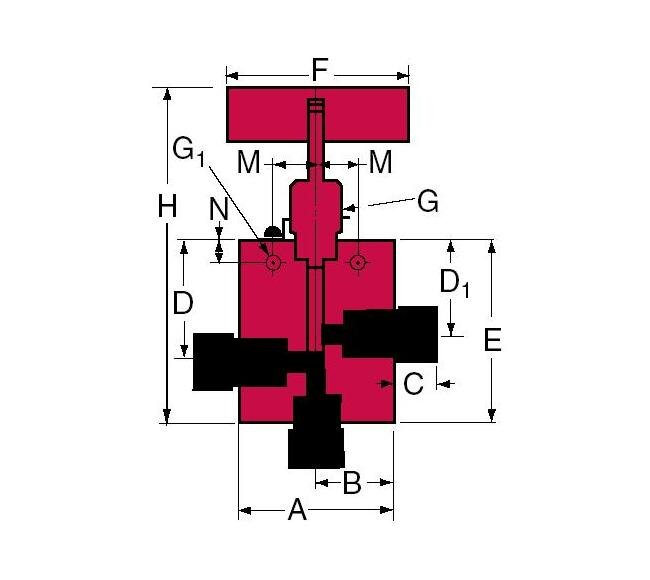

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
2.12 in | 53.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.74 in | 120.4 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.12
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
