Duolok Tube Fitting Front Ferrules - 20mm, 316 SS
Duolok Tube Fitting Front Ferrules - 20mm, 316 SS
SKU:SOU-aeab78
Premium Duolok Tube Front Ferrule, 20mm size, 316 SS material, provides leak-tight connections for instrumentation tube systems.
Regular price
$4.65
Regular price
Sale price
$4.65
Unit price
per
Initiate Order
Duolok Tube Fitting Front Ferrules - 20mm, 316 SS
$4.65
Quantity: 1
Claim Your Seller Account
Duolok Tube Fitting Front Ferrules - 20mm, 316 SS
$4.65
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Tube Fitting Front Ferrule in 316 SS is a premium solution designed to ensure leak-tight connections in instrumentation tube systems. With a fitting size of 20mm, this front ferrule from the Duolok series by SSP Corp. offers exceptional durability and performance. Ideal for industrial applications requiring precision and reliability, these front ferrules deliver secure and efficient tube connections.

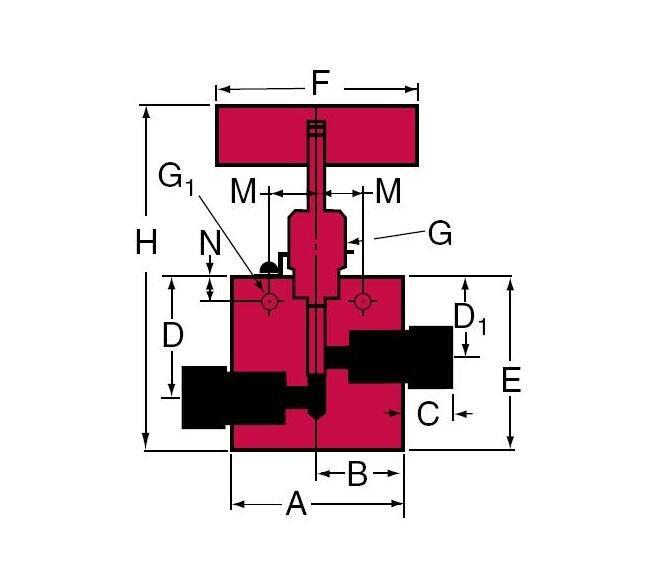

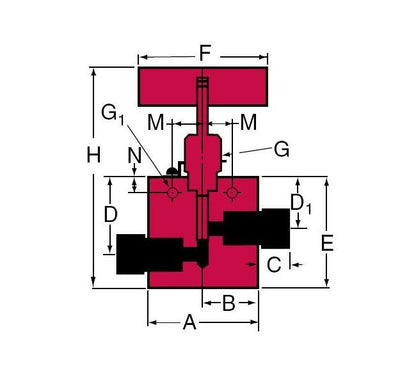

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.68 in | 118.87 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.23
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
