Duolok Tube Fitting Front Ferrules - Alloy C-276, 1/2 inch
Duolok Tube Fitting Front Ferrules - Alloy C-276, 1/2 inch
SKU:SOU-d51f44
Premium Duolok Front Ferrules in Alloy C-276, 1/2 inch size, for secure, leak-free connections in instrumentation tube fittings.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Duolok Tube Fitting Front Ferrules - Alloy C-276, 1/2 inch
$25.99
Quantity: 1
Claim Your Seller Account
Duolok Tube Fitting Front Ferrules - Alloy C-276, 1/2 inch
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with the Duolok Tube Fitting Front Ferrules crafted from Alloy C-276 for exceptional durability and performance. Designed as Front Ferrules in the renowned Duolok series, these fittings ensure a tight, reliable connection in instrumentation tube applications. With a fitting size of 1/2 inch and precision-engineered to meet industry standards, the Duolok Front Ferrules guarantee leak-free operation, corrosion resistance, and easy installation.

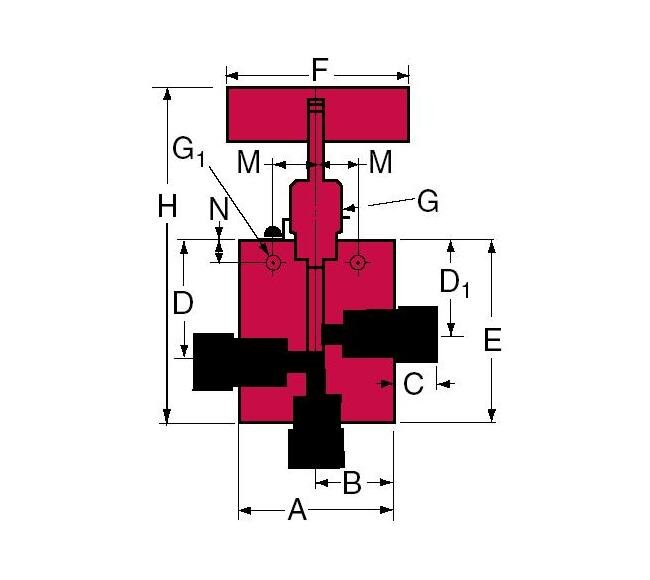

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
2.50 in | 63.50 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.12 in | 130.05 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.23
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
