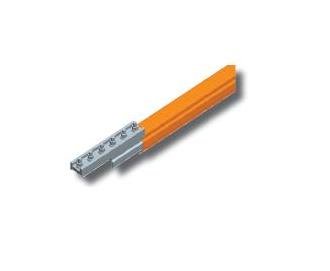

DURA-COAT Conductor Bar Cut Lengths with Splice Installed - Corrosion Resistant Polycarbonate
DURA-COAT Conductor Bar Cut Lengths with Splice Installed - Corrosion Resistant Polycarbonate
SKU:CRA-3a0d28
DURA-COAT Conductor Bar Cut Lengths - Corrosion Resistant, High Amperage, Indoor/Outdoor Use
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DURA-COAT Conductor Bar Cut Lengths with Splice Installed - Corrosion Resistant Polycarbonate
$349.99
Quantity: 1
Claim Your Seller Account
DURA-COAT Conductor Bar Cut Lengths with Splice Installed - Corrosion Resistant Polycarbonate
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Conductor Bar Cut Lengths with Splice Installed are designed for highly corrosive environments, offering a durable solution for Crane Control & Electrification needs. With an impressive Amperage Rating of 700 A and a maximum system voltage of 4160 V AC or 600 V DC per UL Listing, these conductor bars are suitable for indoor and outdoor applications. Made of Polycarbonate material, they provide excellent resistance to harsh conditions. The splice installed ensures easy setup and maintenance. With features like flame resistance, self-extinguishing properties, and compliance with NIST standards, these conductor bars ensure reliable performance in demanding environments.
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
5 to 29 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
1.31 lb/ft
