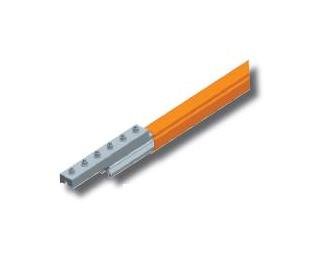

DURA-COAT Conductor Bar Cut Lengths with Splice Installed - Corrosion-Resistant Polycarbonate Conductor Bars
DURA-COAT Conductor Bar Cut Lengths with Splice Installed - Corrosion-Resistant Polycarbonate Conductor Bars
SKU:CRA-30b79c
DURA-COAT Conductor Bars - Corrosion-resistant, high-amperage polycarbonate bars for reliable power transmission
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DURA-COAT Conductor Bar Cut Lengths with Splice Installed - Corrosion-Resistant Polycarbonate Conductor Bars
$299.99
Quantity: 1
Claim Your Seller Account
DURA-COAT Conductor Bar Cut Lengths with Splice Installed - Corrosion-Resistant Polycarbonate Conductor Bars
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Conductor Bar Cut Lengths with Splice Installed are designed for highly corrosive environments, featuring a durable polycarbonate construction that can withstand up to 250°F. With an amperage rating of 1000 A and a cross-sectional area of 1.05 in², these conductor bars ensure efficient power transmission. They also meet various standards such as the dielectric strength of 600 V/mil, self-extinguishing flame test, and specific density of 1.15 g/cm³, making them ideal for Crane Control & Electrification applications that demand reliability and durability.
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
1000 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Cross Sectional Area
1.05 in²
Specifications Length
5 to 29 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
12 ft
Specifications Phase Corrected Impedance Z At 20 C
3.39 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
1.41 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
2.8 lb/ft
