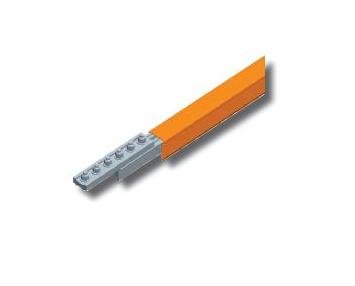

DURA-COAT Conductor Bar with Splice (500A, Polycarbonate, 250°F)
DURA-COAT Conductor Bar with Splice (500A, Polycarbonate, 250°F)
SKU:CRA-90ab29
DURA-COAT Conductor Bar for corrosive environments, 500A, Polycarbonate, 250°F.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DURA-COAT Conductor Bar with Splice (500A, Polycarbonate, 250°F)
$349.99
Quantity: 1
Claim Your Seller Account
DURA-COAT Conductor Bar with Splice (500A, Polycarbonate, 250°F)
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Conductor Bar Cut Lengths with Splice Installed are designed for highly corrosive environments, offering a durable solution for effective crane control and electrification. With an amperage rating of 500A and a maximum system voltage of 600V, these conductor bars provide reliable power transmission. Constructed from polycarbonate material with a cover suitable for both indoor and outdoor use, this product ensures longevity and performance. Featuring a phase & ground cover type, these conductor bars have a cross-sectional area of 0.45 in², supporting safe and efficient operations. Additionally, the included splice installation enhances connectivity, making it a convenient and effective choice for various applications.
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Cross Sectional Area
0.45 in²
Specifications Length
5 to 29 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
8 ft
Specifications Phase Corrected Impedance Z At 20 C
5.40 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
3.27 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
5 ft
Specifications Weight
0.81 lb/ft
