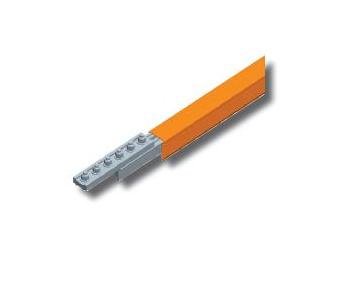

DURA-COAT Conductor Bar with Splice Installed - 500A, Polycarbonate, 30ft

Name: DURA-COAT Conductor Bar with Splice Installed - 500A, Polycarbonate, 30ft
Brand: Clutch Engineering
SKU: CRA-2726cc
Price: 699.99 USD
Availability: OutOfStock

SKU:CRA-2726cc

Highly durable and corrosion-resistant conductor bar for demanding environments. Amperage Rating: 500A, Material: Polycarbonate, Length: 30ft.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DURA-COAT Conductor Bar with Splice Installed is engineered for superior performance in highly corrosive environments. With an Amperage Rating of 500A and made of durable Polycarbonate material, this conductor bar can withstand temperatures up to 250 ºF. Its Phase & Ground cover type allows for versatile indoor and outdoor use. Weighing 25.0 lb and measuring 30.0 ft in length, this conductor bar offers a Cross Sectional Area of 0.45 in². It meets stringent industry standards for resistance, support spacing, and dielectric strength, ensuring reliable power distribution in demanding applications.

Product Specifications

Cover Specifications Dielectric Strength

600 V/mil

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Normal Ambient

-40 to 200 ÂºF

Cover Specifications Specific Density

1.15 g/cmÂ³

Cover Specifications Volume Resistivity

>1013 Î©/mil

Specifications Amperage Rating

500 A

Specifications Available Accessories

Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves

Specifications Cover Type

Phase & Ground/ Indoors & Outdoors (Red)

Specifications Cross Sectional Area

0.45 inÂ²

Specifications Length

30.0 ft

Specifications Material

Polycarbonate

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Maximum Temperature

250 ÂºF

Specifications Minimum Bending Radius

8 ft

Specifications Phase Corrected Impedance Z At 20 C

5.40 x 10-5 c/ft

Specifications Resistance R For Dc At 20 C

3.27 x 10-5 c/ft

Specifications Spacing Between Conductors

3.0 in

Specifications Support Spacing

5 ft

Specifications Weight

25.0 lb
