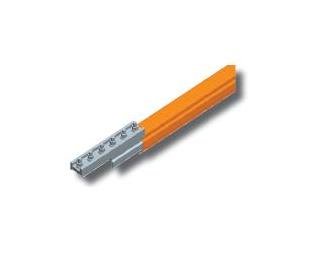

DURA-COAT Conductor Bar with Splice Installed - Corrosion-Resistant Conductor Bar
DURA-COAT Conductor Bar with Splice Installed - Corrosion-Resistant Conductor Bar
SKU:CRA-9acd3c
Corrosion-resistant DURA-COAT Conductor Bar with Splice, ideal for demanding environments. Amperage Rating: 700 A, Material: Polycarbonate, Max Temp: 250 °F.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
DURA-COAT Conductor Bar with Splice Installed - Corrosion-Resistant Conductor Bar
$849.99
Quantity: 1
Claim Your Seller Account
DURA-COAT Conductor Bar with Splice Installed - Corrosion-Resistant Conductor Bar
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Conductor Bar with Splice Installed is designed for highly corrosive environments, offering reliable power transmission with an amperage rating of 700 A. Made of polycarbonate, this conductor bar can withstand temperatures up to 250 °F and a maximum system voltage of 4160 V AC or 600 V DC per UL listing. With a self-extinguishing cover, this conductor bar ensures safety in both indoor and outdoor settings. Its unique design includes phase and ground covers, making it suitable for various applications. The product also comes with a range of accessories for added versatility, including pick-up guides, transfer caps, and vertical/horizontal curves.
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
30.0 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
40.0 lb
