DURA-COAT Expansion Section - 700A Polycarbonate Conductor Bar
DURA-COAT Expansion Section - 700A Polycarbonate Conductor Bar
SKU:CRA-77ed22
DURA-COAT Expansion Section - 700A Polycarbonate Conductor Bar for corrosion-resistant electrification systems.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DURA-COAT Expansion Section - 700A Polycarbonate Conductor Bar
$349.99
Quantity: 1
Claim Your Seller Account
DURA-COAT Expansion Section - 700A Polycarbonate Conductor Bar
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

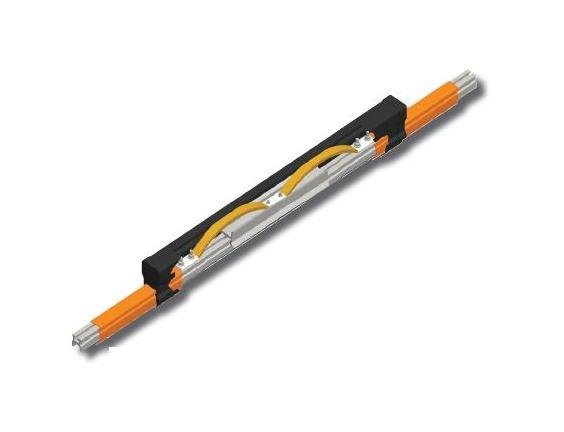

The DURA-COAT Expansion Section is a critical component for structural expansion joints and systems exceeding 390 ft. Designed for highly corrosive environments, it features a robust polycarbonate construction with an impressive amperage rating of 700 A. This expansion section provides reliable performance both indoors and outdoors, with a maximum temperature tolerance of 250°F. Covering phase and ground functions in red, it ensures safety and efficiency in electrification systems. Accessories like a thermostatically controlled heater wire system for icy conditions, transfer caps, pick-up guides, and options for vertical and horizontal curves enhance its versatility.
Product Specifications
Specifications Amperage Rating
700 A
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Length
15.0 ft
Specifications Material
Polycarbonate
Specifications Maximum Temperature
250 ºF
Specifications Weight
50.0 lb
