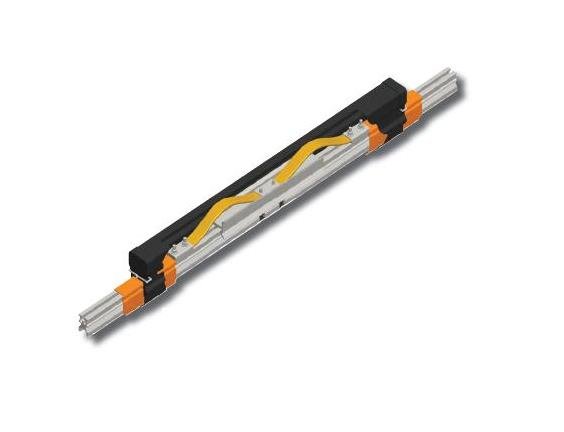

DURA-COAT Expansion Section - Hevi-Bar II Conductor Bar
DURA-COAT Expansion Section - Hevi-Bar II Conductor Bar
SKU:CRA-224d02
DURA-COAT Expansion Section - Durable polycarbonate material, 1000A, 250 ºF max temp, for structural expansion joints, ideal for highly corrosive environments.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DURA-COAT Expansion Section - Hevi-Bar II Conductor Bar
$899.99
Quantity: 1
Claim Your Seller Account
DURA-COAT Expansion Section - Hevi-Bar II Conductor Bar
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Expansion Section is a crucial component designed for structural expansion joints and systems over 390 ft in highly corrosive environments. Made of durable polycarbonate material, this 20.0 ft long section features an impressive amperage rating of 1000 A and a maximum temperature resistance of 250 ºF. With phase & ground cover suitable for indoor and outdoor use, it weighs 70.0 lb. Additionally, choose from various available accessories like thermostatically controlled heater wire system, Transfer Caps, Pick-up Guides, and options for vertical and horizontal curves.
Product Specifications
Specifications Amperage Rating
1000 A
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Length
20.0 ft
Specifications Material
Polycarbonate
Specifications Maximum Temperature
250 ºF
Specifications Weight
70.0 lb
