DURA-COAT Expansion Section - Hevi-Bar II Conductor Bar
DURA-COAT Expansion Section - Hevi-Bar II Conductor Bar
SKU:CRA-06c5c9
Enhance your crane system with the DURA-COAT Expansion Section - Hevi-Bar II series for superior corrosion resistance and efficient power transmission.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
DURA-COAT Expansion Section - Hevi-Bar II Conductor Bar
$799.99
Quantity: 1
Claim Your Seller Account
DURA-COAT Expansion Section - Hevi-Bar II Conductor Bar
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

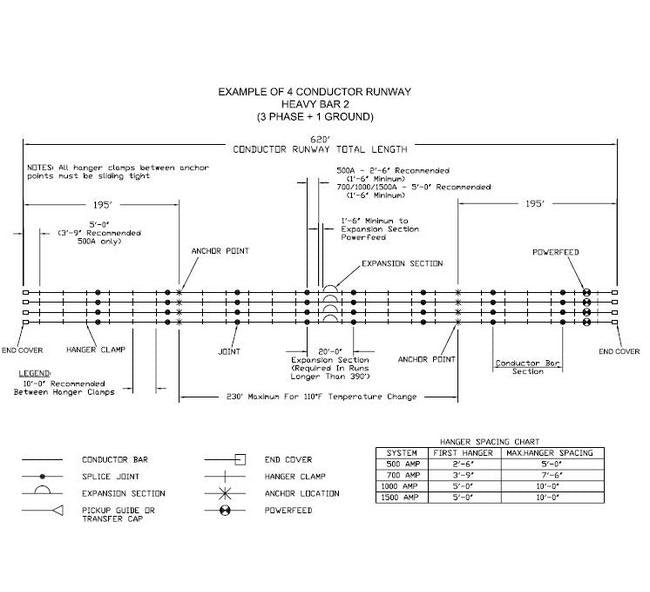

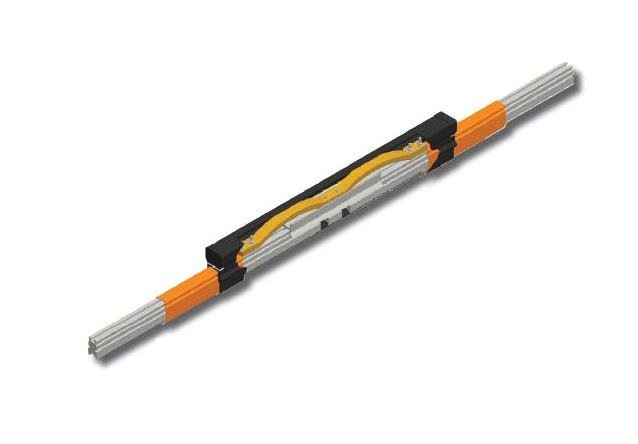

The DURA-COAT Expansion Section from the Hevi-Bar II Conductor Bar series is a vital component required at all structural expansion joints and for systems exceeding 390 ft. Designed for highly corrosive environments, this PVC expansion section boasts an impressive amperage rating of 1500 A, a maximum temperature resistance of 160 °F, and a durable Phase & Ground cover suitable for outdoor use. Weighing 88.0 lb and extending up to 20.0 ft in length, this expansion section is equipped with essential features like thermostatically controlled heater wire system for ice and snow environments. Enhance your crane control and electrification system with the reliability and performance of the DURA-COAT Expansion Section.
Product Specifications
Specifications Amperage Rating
1500 A
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Length
20.0 ft
Specifications Material
PVC
Specifications Maximum Temperature
160 ºF
Specifications Weight
88.0 lb
