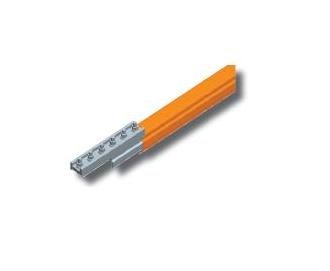

DURA-COAT Heavy-Duty Conductor Bar with Splice Installed
DURA-COAT Heavy-Duty Conductor Bar with Splice Installed
SKU:CRA-7ce267
DURA-COAT Conductor Bar with Splice Installed: Ideal for high-corrosion environments. Ample 700A, PVC material, outdoor UV protection
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
DURA-COAT Heavy-Duty Conductor Bar with Splice Installed
$599.99
Quantity: 1
Claim Your Seller Account
DURA-COAT Heavy-Duty Conductor Bar with Splice Installed
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Conductor Bar with Splice Installed is designed for highly corrosive environments, offering a reliable solution for crane control and electrification. With a robust amperage rating of 700 A and a PVC construction, this conductor bar ensures efficient power distribution. It features a maximum temperature of 160 °F, UV-stable phase & ground cover for outdoor use, and a weight of 40.0 lb. The bar is 30.0 ft long, with a cross-sectional area of 0.70 in², suitable for applications requiring a maximum system voltage of 4160 V AC or 600 V DC. The inclusion of various accessories makes installation and maintenance hassle-free, meeting the needs of both consumer and institutional buyers.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
40.0 lb
