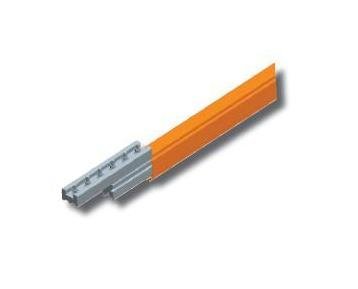

DURA-COAT Heavy-Duty Conductor Bar with Splice Installed
DURA-COAT Heavy-Duty Conductor Bar with Splice Installed
SKU:CRA-48f86c
DURA-COAT Heavy-Duty Conductor Bar with Splice, 1500A, Polycarbonate Material, Suitable for Harsh Environments
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DURA-COAT Heavy-Duty Conductor Bar with Splice Installed
$899.99
Quantity: 1
Claim Your Seller Account
DURA-COAT Heavy-Duty Conductor Bar with Splice Installed
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Heavy-Duty Conductor Bar with Splice Installed is designed for highly corrosive environments, offering a robust solution for reliable power distribution. With an Amperage Rating of 1500 A and a Material made of Polycarbonate, this conductor bar can withstand extreme conditions. Its Maximum Temperature of 250°F and Cover Type suitable for both indoors and outdoors ensure durability. Weighing 110.0 lb and measuring 30.0 ft in Length, this conductor bar provides a Cross Sectional Area of 2.29 in², making it ideal for heavy-duty applications. With a Maximum System Voltage of 4160 V AC or 600 V DC, this product is built to deliver superior performance.
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
1500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)

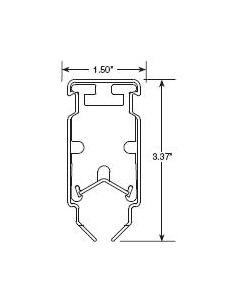

Specifications Cross Sectional Area
2.29 in²
Specifications Length
30.0 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
15 ft
Specifications Phase Corrected Impedance Z At 20 C
2.28 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
0.64 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
110.0 lb
