DURA-COAT PVC Conductor Bar 1000A, 30ft, Orange Cover

Name: DURA-COAT PVC Conductor Bar 1000A, 30ft, Orange Cover
Brand: Clutch Engineering
SKU: CRA-1ea441
Price: 899.99 USD
Availability: OutOfStock

SKU:CRA-1ea441

DURA-COAT PVC Conductor Bar for high-corrosion environments, 1000A, 30ft, Orange Cover, accessories available

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

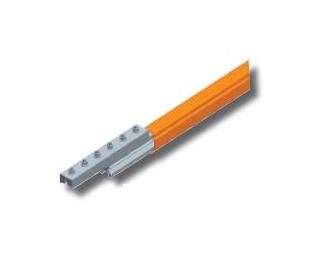

The DURA-COAT Conductor Bar with Splice Installed is designed for highly corrosive environments, featuring a durable PVC material construction. With an Amperage Rating of 1000A and a Maximum System Voltage of 4160V AC/600V DC per UL listing, this conductor bar ensures reliable and safe power distribution. Its Phase / Indoors (Orange) cover type, flame-retardant properties, and resistance to temperatures up to 160°F make it ideal for crane control applications. Additionally, this product comes with various accessories like Pick-up Guides and Transfer Caps for versatile use. Meeting industry standards for dielectric strength, volume resistivity, and flame resistance, the DURA-COAT conductor bar guarantees performance and longevity in demanding settings.

Product Specifications

Cover Specifications Dielectric Strength

450 V/mil

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Normal Ambient

-40 to 104 ÂºF

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Volume Resistivity

>1012 Î©/mil

Specifications Amperage Rating

1000 A

Specifications Available Accessories

Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves

Specifications Cover Type

Phase / Indoors (Orange)

Specifications Cross Sectional Area

1.05 inÂ²

Specifications Length

30.0 ft

Specifications Material

PVC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

4160 V | 600 V

Specifications Maximum Temperature

160 ÂºF

Specifications Minimum Bending Radius

12 ft

Specifications Phase Corrected Impedance Z At 20 C

3.39 x 10-5 c/ft

Specifications Resistance R For Dc At 20 C

1.41 x 10-5 c/ft

Specifications Spacing Between Conductors

3.0 in

Specifications Support Spacing

10 ft

Specifications Weight

85.0 lb

DURA-COAT PVC Conductor Bar 1000A, 30ft, Orange Cover
