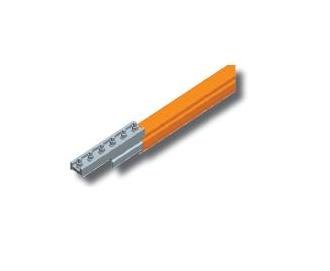

DURA-COAT PVC Conductor Bar with Installed Splice - 700A, 30ft

DURA-COAT PVC Conductor Bar with Installed Splice - 700A, 30ft

SKU:CRA-9793ac

DURA-COAT PVC Conductor Bar with Installed Splice - Ideal for corrosive environments, 700A, 30ft

Regular price $599.99
Regular price Sale price $599.99
Sale

Initiate Order

DURA-COAT PVC Conductor Bar with Installed Splice - 700A, 30ft

DURA-COAT PVC Conductor Bar with Installed Splice - 700A, 30ft

$599.99

Quantity: 1

Claim Your Seller Account

DURA-COAT PVC Conductor Bar with Installed Splice - 700A, 30ft

DURA-COAT PVC Conductor Bar with Installed Splice - 700A, 30ft

$599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DURA-COAT PVC Conductor Bar with Installed Splice is specially designed for highly corrosive environments. With an amperage rating of 700A and a maximum system voltage of 4160V AC or 600V DC, this conductor bar ensures efficient power distribution. Made of PVC material, it can withstand temperatures up to 160°F. The orange Phase/Indoors cover provides visibility and protection, while its sturdy construction with a cross-sectional area of 0.70 in² guarantees durability. Suitable for crane control and electrification, this conductor bar comes with various accessories for versatile installation options.

Product Specifications

Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
40.0 lb
