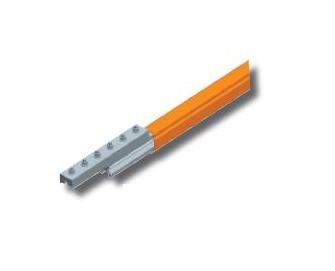

DURA-COAT PVC Conductor Bar with Splice, 1000A, 4160V, Orange Cover
DURA-COAT PVC Conductor Bar with Splice, 1000A, 4160V, Orange Cover
SKU:CRA-45d84a
DURA-COAT PVC Conductor Bar for corrosive environments, 1000A, 4160V, orange cover. Reliable power distribution with durable design.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DURA-COAT PVC Conductor Bar with Splice, 1000A, 4160V, Orange Cover
$299.99
Quantity: 1
Claim Your Seller Account
DURA-COAT PVC Conductor Bar with Splice, 1000A, 4160V, Orange Cover
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Conductor Bar Cut Lengths with Splice Installed are designed for highly corrosive environments, meeting the demanding needs of industrial operations. With an impressive Amperage Rating of 1000 A and a Maximum System Voltage of 4160 V, these PVC conductor bars ensure reliable power distribution. The Phase / Indoors (Orange) cover offers protection in challenging conditions. Featuring a Cross Sectional Area of 1.05 in² and impeccable resistance values, these conductor bars provide efficient performance and durability. Supported by a range of accessories for versatile installations.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
1000 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
1.05 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
12 ft
Specifications Phase Corrected Impedance Z At 20 C
3.39 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
1.41 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
2.8 lb/ft
