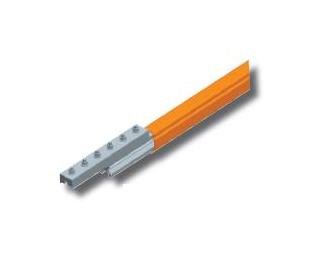

DURA-COAT PVC Conductor Bar with Splice - 1000A, UV Stable, 4160V
DURA-COAT PVC Conductor Bar with Splice - 1000A, UV Stable, 4160V
SKU:CRA-3576d5
Durable DURA-COAT PVC Conductor Bar with Splice - 1000A, UV Stable, 4160V
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DURA-COAT PVC Conductor Bar with Splice - 1000A, UV Stable, 4160V
$189.99
Quantity: 1
Claim Your Seller Account
DURA-COAT PVC Conductor Bar with Splice - 1000A, UV Stable, 4160V
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT PVC Conductor Bar Cut Lengths with Splice Installed are designed for highly corrosive environments, offering an Amperage Rating of 1000A. With a durable PVC material construction, this product ensures reliable performance even in harsh conditions. Featuring a Maximum System Voltage of 4160V, UV Stable Black Cover, and a Temperature Rating of 160ºF, it meets the stringent requirements of crane control systems. The included splice enhances installation efficiency, making it an ideal choice for both industrial and institutional applications.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
1000 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Cross Sectional Area
1.05 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
12 ft
Specifications Phase Corrected Impedance Z At 20 C
3.39 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
1.41 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
2.8 lb/ft
