DURA-COAT PVC Conductor Bar with Splice | 1500A, 4160V

DURA-COAT PVC Conductor Bar with Splice | 1500A, 4160V

CRA-30aed9

DURA-COAT PVC Conductor Bar with Splice for corrosive environments, 1500A, 4160V. Versatile accessories included.

$299.99
$299.99
Sale

Initiate Order

DURA-COAT PVC Conductor Bar with Splice | 1500A, 4160V

DURA-COAT PVC Conductor Bar with Splice | 1500A, 4160V

$299.99

Quantity: 1

Claim Your Seller Account

DURA-COAT PVC Conductor Bar with Splice | 1500A, 4160V

DURA-COAT PVC Conductor Bar with Splice | 1500A, 4160V

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

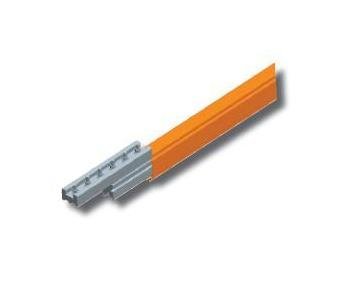

The DURA-COAT Conductor Bar Cut Lengths with Splice Installed is designed for highly corrosive environments, offering a reliable solution for crane control & electrification needs. With an amperage rating of 1500A and a maximum system voltage of 4160V, this PVC conductor bar ensures optimal performance. The cover type is Phase / Indoors (Orange), providing durability and visibility. It features a weight of 3.6 lb/ft, a maximum temperature of 160 °F, and meets industry standards for resistance, impedance, and spacing requirements. Additionally, it comes with various accessories for versatile installation options.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
1500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase / Indoors (Orange)

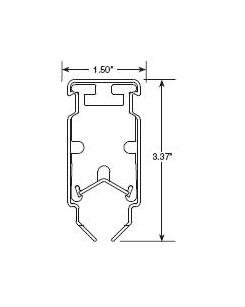

Specifications Cross Sectional Area
2.29 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
15 ft
Specifications Phase Corrected Impedance Z At 20 C
2.28 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
0.64 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
3.6 lb/ft
