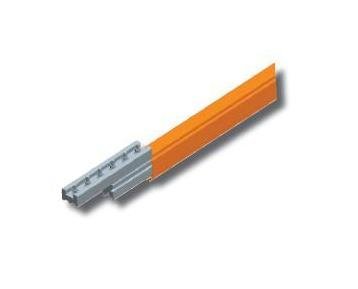

DURA-COAT PVC Conductor Bar with Splice - 30ft, 1500A, Outdoor UV Stable
DURA-COAT PVC Conductor Bar with Splice - 30ft, 1500A, Outdoor UV Stable
SKU:CRA-a49878
DURA-COAT PVC Conductor Bar with Splice - Corrosion-resistant, 1500A, 30ft
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
DURA-COAT PVC Conductor Bar with Splice - 30ft, 1500A, Outdoor UV Stable
$799.99
Quantity: 1
Claim Your Seller Account
DURA-COAT PVC Conductor Bar with Splice - 30ft, 1500A, Outdoor UV Stable
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT PVC Conductor Bar with Splice is designed for highly corrosive environments, offering a robust solution for Crane Control & Electrification needs. With an amperage rating of 1500A and a maximum system voltage of 4160V, this conductor bar ensures efficient power distribution. Its PVC material and outdoor UV-stable black cover provide durability and protection against harsh conditions. Additionally, meeting industry standards for dielectric strength, flame resistance, and support spacing, this conductor bar is ideal for both consumer and institutional buyers.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
1500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Cross Sectional Area
2.29 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
15 ft
Specifications Phase Corrected Impedance Z At 20 C
2.28 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
0.64 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
110.0 lb
