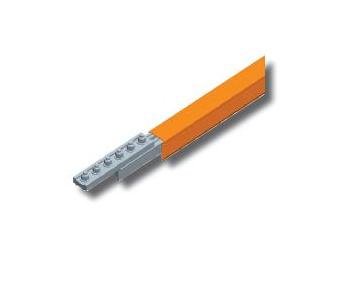

DURA-COAT PVC Conductor Bar with Splice - 500A, 600V
DURA-COAT PVC Conductor Bar with Splice - 500A, 600V
SKU:CRA-27cce1
DURA-COAT PVC Conductor Bar - 500A, 600V, Ideal for corrosive environments
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DURA-COAT PVC Conductor Bar with Splice - 500A, 600V
$129.99
Quantity: 1
Claim Your Seller Account
DURA-COAT PVC Conductor Bar with Splice - 500A, 600V
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT PVC Conductor Bar Cut Lengths with Splice Installed is designed for highly corrosive environments, offering exceptional durability and performance. With a high Amperage Rating of 500A and Maximum System Voltage of 600V, this PVC conductor bar is ideal for indoor crane control applications. It features a Phase/Indoors orange cover, ensuring visibility and safety. The conductor bar is Phase Corrected Impedance Z rated, providing reliable power distribution with minimal resistance. Additionally, it comes with various accessories such as pick-up guides and thermostatically controlled heater wire systems for versatile usage.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
0.45 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
8 ft
Specifications Phase Corrected Impedance Z At 20 C
5.40 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
3.27 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
5 ft
Specifications Weight
0.81 lb/ft
