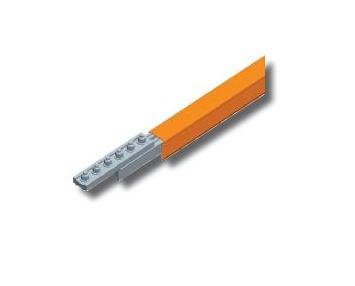

DURA-COAT PVC Conductor Bar with Splice - 500A, 600V, Green Cover

Name: DURA-COAT PVC Conductor Bar with Splice - 500A, 600V, Green Cover
Brand: Clutch Engineering
SKU: CRA-ad0672
Price: 79.99 USD
Availability: OutOfStock

SKU:CRA-ad0672

Highly durable DURA-COAT PVC Conductor Bar with Splice - Ideal for Crane Control & Electrification

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DURA-COAT PVC Conductor Bar Cut Lengths with Splice Installed are designed for highly corrosive environments, offering a reliable solution for Crane Control & Electrification needs. With an Amperage Rating of 500A and a Maximum System Voltage of 600V, these conductor bars ensure efficient power distribution. The PVC material and Ground/Indoors (Green) cover provide durability and protection. Additionally, the product features a lightweight design, high resistance, and various available accessories, making it a versatile choice for industrial applications.

Product Specifications

Cover Specifications Dielectric Strength

450 V/mil

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Normal Ambient

-40 to 104 ÂºF

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Volume Resistivity

>1012 Î©/mil

Specifications Amperage Rating

500 A

Specifications Available Accessories

Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves

Specifications Cover Type

Ground / Indoors (Green)

Specifications Cross Sectional Area

0.45 inÂ²

Specifications Length

5 to 29 ft

Specifications Material

PVC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Maximum Temperature

160 ÂºF

Specifications Minimum Bending Radius

8 ft

Specifications Phase Corrected Impedance Z At 20 C

5.40 x 10-5 c/ft

Specifications Resistance R For Dc At 20 C

3.27 x 10-5 c/ft

Specifications Spacing Between Conductors

3.0 in

Specifications Support Spacing

5 ft

Specifications Weight

0.81 lb/ft
