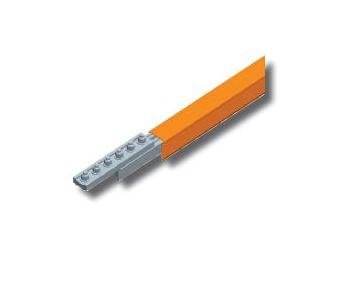

DURA-COAT PVC Conductor Bar with Splice, 500A, UV Stable
DURA-COAT PVC Conductor Bar with Splice, 500A, UV Stable
SKU:CRA-bbe008
DURA-COAT PVC Conductor Bar: Corrosion-resistant, 500A, UV Stable. Ideal for crane control & electrification.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
DURA-COAT PVC Conductor Bar with Splice, 500A, UV Stable
$279.99
Quantity: 1
Claim Your Seller Account
DURA-COAT PVC Conductor Bar with Splice, 500A, UV Stable
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Conductor Bar Cut Lengths with Splice Installed are designed for highly corrosive environments, offering a robust solution for crane control and electrification needs. With a durable PVC material and a maximum temperature of 160°F, these conductor bars boast an amperage rating of 500A, making them suitable for demanding applications. With features such as Phase & Ground cover type, UV stability, and a weight of 0.81 lb/ft, these conductor bars ensure reliable performance. Additionally, the product complies with industry standards for resistance, impedance, and support spacing, providing a dependable solution for your electrical distribution requirements.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Cross Sectional Area
0.45 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
8 ft
Specifications Phase Corrected Impedance Z At 20 C
5.40 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
3.27 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
5 ft
Specifications Weight
0.81 lb/ft
