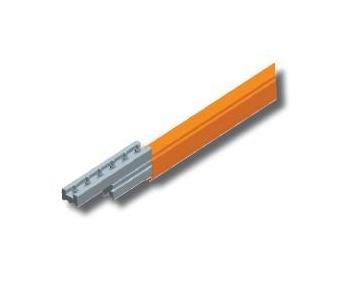

DURA-COAT PVC Conductor Bar with Splice Installed
DURA-COAT PVC Conductor Bar with Splice Installed
SKU:CRA-07b85f
Reliable DURA-COAT PVC Conductor Bar for corrosive environments. Amperage Rating: 1500 A, Material: PVC, Max Temp: 160 °F. Ensures efficient power distribution and safety.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DURA-COAT PVC Conductor Bar with Splice Installed
$899.99
Quantity: 1
Claim Your Seller Account
DURA-COAT PVC Conductor Bar with Splice Installed
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT PVC Conductor Bar with Splice Installed is a reliable solution designed for highly corrosive environments. With a robust construction and a maximum amperage rating of 1500 A, this conductor bar ensures efficient power distribution. Its PVC material and self-extinguishing cover with a temperature rating of up to 160 °F make it suitable for indoor use. Additionally, it meets industry-specific certifications, ensuring compliance with federal procurement standards and enhancing safety in industrial applications.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
1500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
2.29 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
15 ft
Specifications Phase Corrected Impedance Z At 20 C
2.28 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
0.64 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
110.0 lb
