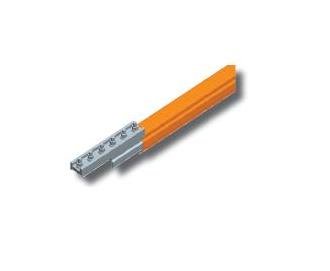

DURA-COAT PVC Conductor Bar with Splice Installed, 700A, 30ft

DURA-COAT PVC Conductor Bar with Splice Installed, 700A, 30ft

SKU:CRA-a1709b

DURA-COAT PVC Conductor Bar with 700A rating, ideal for corrosive environments

Regular price $799.99
Regular price Sale price $799.99
Sale

Initiate Order

DURA-COAT PVC Conductor Bar with Splice Installed, 700A, 30ft

DURA-COAT PVC Conductor Bar with Splice Installed, 700A, 30ft

$799.99

Quantity: 1

Claim Your Seller Account

DURA-COAT PVC Conductor Bar with Splice Installed, 700A, 30ft

DURA-COAT PVC Conductor Bar with Splice Installed, 700A, 30ft

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DURA-COAT PVC Conductor Bar with Splice Installed is designed for highly corrosive environments, featuring a robust PVC construction with a 700A amperage rating. With a maximum temperature of 160°F and a weight of 40.0 lb, this conductor bar ensures reliable power distribution. Its resistance and impedance values meet industry standards, providing efficient electrical conductivity. The included splice simplifies installation, making it ideal for crane control systems in demanding applications.

Product Specifications

Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Ground / Indoors (Green)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
40.0 lb
