Durable 1/2 HP Motor Vehicular Slide Gate Operator
Durable 1/2 HP Motor Vehicular Slide Gate Operator
SKU:SLI-4ac07a
Enhance security with the Durable 1/2 HP Vehicular Slide Gate Operator for residential, commercial, and industrial settings.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Durable 1/2 HP Motor Vehicular Slide Gate Operator
$1,899.99
Quantity: 1
Claim Your Seller Account
Durable 1/2 HP Motor Vehicular Slide Gate Operator
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

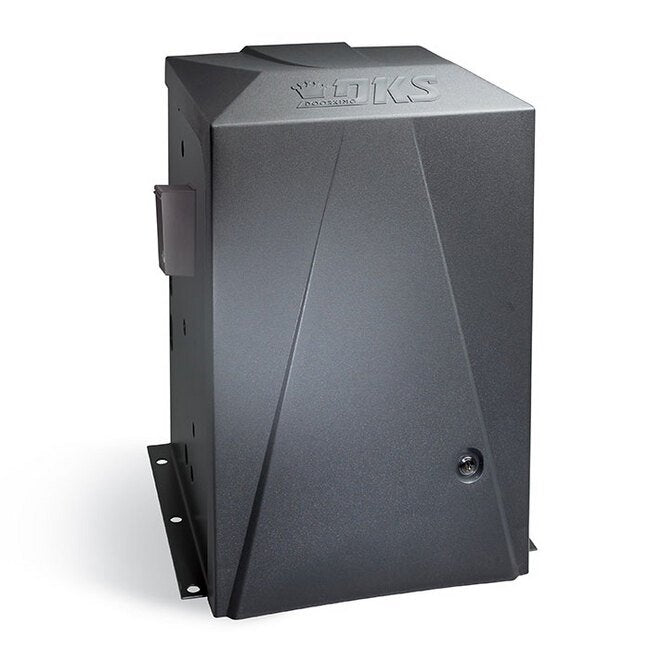

Experience worry-free operation with the Durable 1/2 HP Motor Vehicular Slide Gate Operator by DoorKing®. This versatile operator is ideal for residential, commercial, and industrial applications, featuring self-adjusting magnetic limits, fail-safe release, anti-tailgating feature, and convenient plug-in loop detector ports. Compliant with UL 325 and 991, ETL Listed, and designed for Class I-IV operations, this operator ensures safety, reliability, and ease of use.
Product Specifications
Additional Information Additional Information
The solar power version is ideal in applications where AC power is unavailable, with the option to add your own solar system for power, or you can use the DKS solar kit.Reliable access control should never come with risk - DKS Slide Gate Operators are designed to maintain the security of your vehicle entry points without posing a threat to pedestrians. Long considered to be the leading protective Vehicular Gate Operators on the market, DKS products exceed the UL 325 Safety Standard and offer both electronic and mechanical systems to detect people or objects in the opening or closing path of the gate. In addition, our patented "Fail-Safe" release design is preferred by fire authorities throughout the country. For versatile installation, smooth and quiet operation, pedestrian and vehicle protection, plus clean aesthetics - DKS has it all.
Advantages Advantages
1/2 horsepower for up to 30 ft gates weighing up to 1000 lb.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialParkingMixed Use BuildingsResidentialSelf Storage
Duty Cycle Type Duty Cycle Type
Continuous
Key Features Key Features
Self-adjusting, no maintenance magnetic limits.Partial-open feature.Anti-tailgating feature.Gate tracker reporting output.Ports for plug-in loop detectors.Two convenience outlets.Fail-safe release (fail-secure optional).Programming switches.Built-in reset switch.Built-in power On/Off switch.
Options Options
Fail-secure release kit.Nickel plated chain.Plug-in loop detectors.Heater kit for cold environments.Base plate to post mount this operator (does not include posts).Surge suppressors.
Specifications Alternating Current Ac Voltage
115 V | 208 V | 230 V | 460 V
Specifications Anti Tailgate Feature
Yes
Specifications Breakaway Hub
Yes
Specifications Class Of Operation
Class I | Class II | Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
yes
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Self-adjusting, No Maintenance Magnetic Limits
Specifications Manual Release
Fail Safe Release (Fail-Secure optional)
Specifications Maximum Gate Length
30 ft
Specifications Maximum Gate Weight
1000 lb
Specifications Motor Power
1/2 hp
Specifications Mounting Type
Pad/Post
Specifications Number Of Phase
1 | 3
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Partial Open Limit
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
No
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Type
Slide
Technical Specifications Technical Specifications
Model 9150 with 1/2 HP MotorFrame: G90 galvanized steel to prevent rustingCover: Steel or polypropylene cover availablePrimary Reduction: Single cog beltSpeed: Approximately 10 in/sec (254 mm/sec)Chain: Unit is shipped with 20 ft (6 m) of #40; roller chain, chain brackets, hardwareFail-safe release standardGATE TRACKERTMReporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control systemMaximum gate length 30-feet.Maximum gate weight 1000 pounds. (Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator. If DC Convenience Open option is installed, maximum gate weight is 800 pounds. Other external factors may affect the performance of the gate operator.)1/2 HP continuous-duty motor.115 VAC, 60 Hz, 5.4A, 208 VAC, 60 Hz, 2.8A, 230 VAC, 60 Hz, 2.7A, 460 VAC, 60 Hz, 1.4A (These operators use a step-down transformer to achieve 115 VAC operating voltage.)Operator is shipped with chain brackets and 20-feet of #40; chain.Class I, II, III and IV applications.Compliant with UL 325 and 991. ETL listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions: 15.25 "W x 24.75 "H x 16.75 "D
